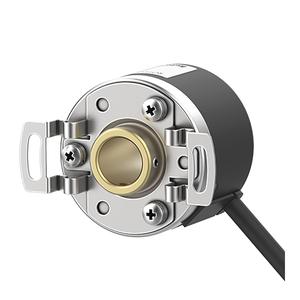

Autonics E40HB8-15-3-T-24 Rotary Encoder
The Autonics E40HB8-15-3-T-24 Rotary Encoder offers Ø8mm shaft inner diameter, 5000rpm Max. allowable revolution, Totem pole, Control output 12-24VDC, Power supply, 15P/R, resolution Radial cable type connection type. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the Autonics E40HB Series.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E40HB8-15-3-T-24 |
Autonics E40HB8-15-3-T-24 Rotary Encoder – Technical Specifications
| Specification | Value |
|---|---|
| Shaft inner diameter | Ø8mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 50gf.cm(max. 0.0049N.m) |
| Resolution | 15P/R |
| Output phase | A, B, Z |
| Control output | Totem pole |
| Power supply | 12-24VDC |
| Connection type | Radial cable type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Bracket |
| Weight | Approx. 120g |
Talk to Our Engineer for 40 mm Incremental Rotary Encoders E40HB8-15-3-T-24 with exclusive offers. Core System Specifications of E40HB8-15-3-T-24 are shaft inner diameter of Ø8mm, designed for precise and smooth rotational measurement. It operates at a maximum allowable revolution of 5000rpm, ensuring high-speed performance. With a resolution of 15P/R, it provides accurate feedback for various applications. The control output is a Totem pole, supported by a power supply 12-24VDC, ensuring stable operation. The connection type is an Radial cable type, adding reliability to the design. Weighing Approx. 120g, this compact encoder is built for efficient integration. It operates in an ambient temperature range of -10 to 70℃, storage: -25 to 85℃ and, with an ambient humidity range of 35 to 85% RH, storage: 35 to 90% RH. Don't Miss Out on a Quote for your requirement of 40 mm Incremental Rotary Encoders. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
