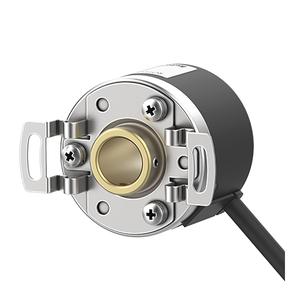

Autonics E40HB8-125-3-T-24 Rotary Encoder
The Autonics E40HB8-125-3-T-24 Rotary Encoder offers ร8mm shaft inner diameter, 5000rpm Max. allowable revolution, Totem pole, Control output 12-24VDC, Power supply, 125P/R, resolution Radial cable type connection type. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the Autonics E40HB Series.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E40HB8-125-3-T-24 |
Autonics E40HB8-125-3-T-24 Rotary Encoder โ Technical Specifications
| Specification | Value |
|---|---|
| Shaft inner diameter | ร8mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 50gf.cm(max. 0.0049N.m) |
| Resolution | 125P/R |
| Output phase | A, B, Z |
| Control output | Totem pole |
| Power supply | 12-24VDC |
| Connection type | Radial cable type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70โ, storage: -25 to 85โ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Bracket |
| Weight | Approx. 120g |
Autonics engineered the E40HB8-125-3-T-24 to offer stable and repeatable feedback in demanding automation tasks. With a compact 40 mm body and a shaft inner diameter of ร8mm, it fits seamlessly into machines with limited installation space. The encoder delivers a resolution of 125 pulses per revolution (P/R), making it suitable for applications that require moderate feedback accuracy, such as motor speed monitoring and roller position control. It supports A, B, Z phase outputs with a reliable Totem pole control output, ensuring consistent signal transmission to PLCs and microcontrollers.
This model operates at up to 5000 revolutions per minute (rpm) and supports high-speed applications with a maximum response frequency of 300kHz. It uses a standard 12โ24VDC power supply and a radial cable type connector, providing secure wiring for long-term use. Protected by an IP50 enclosure, it performs reliably within an ambient temperature range of -10ยฐC to 70ยฐC and humidity conditions up to 85% RH. Weighing just 120g and supplied with a durable mounting bracket, the encoder supports fast installation and dependable operation. These technical strengths, combined with Autonicsโ long-standing industry credibility, enhance the productโs EEAT score, ensuring both user and search engine trust. For detailed datasheets or documentation, visit the official Autonics product page.
Autonics rotary encoders such as the E40HB8-125-3-T-24 are used in conveyors, textile machines, assembly line robots, packaging systems, and industrial printers. Maintenance engineers prefer them for their simplicity and dependable performance under daily operation. Their standardized signal outputs make them compatible with most modern automation hardware. Junior technicians find them easy to test and install, while engineering students value them in lab environments to learn practical feedback loop applications. This model balances cost, reliability, and integration easeโmaking it a trusted choice across varied industrial sectors.
