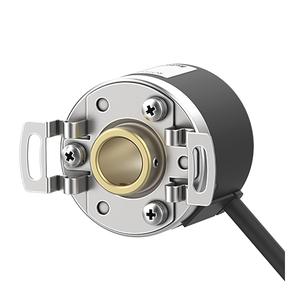

Autonics E40HB8-1024-6-L-24 Rotary Encoder
The Autonics E40HB8-1024-6-L-24 Rotary Encoder offers Γ8mm shaft inner diameter, 5000rpm Max. allowable revolution, Line Driver, Control output 12-24VDC, Power supply, 1024P/R, resolution Radial cable type connection type. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the Autonics E40HB Series.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E40HB8-1024-6-L-24 |
Autonics E40HB8-1024-6-L-24 Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Shaft inner diameter | Γ8mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 50gf.cm(max. 0.0049N.m) |
| Resolution | 1024P/R |
| Output phase | A, @(A^), B, @(B^), Z, @(Z^) |
| Control output | Line Driver |
| Power supply | 12-24VDC |
| Connection type | Radial cable type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70β, storage: -25 to 85β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Bracket |
| Weight | Approx. 120g |
Autonics has designed the E40HB8-1024-6-L-24 Wheel Type Incremental Rotary Encoder to meet the demanding needs of industrial automation. With a compact 40 mm body and a shaft inner diameter of Γ8mm, this encoder supports smooth rotary motion tracking with minimal torque load. It features a maximum allowable revolution of 5000 rpm and a response frequency of 300kHz, ensuring it performs reliably even in high-speed operations. The 1024 pulses per revolution (P/R) resolution enables precise positioning, making it ideal for closed-loop control systems.
Equipped with a Line Driver control output, the encoder transmits robust signals even in electrically noisy environments. It operates on a 12β24VDC Β±5% power supply, offering wide voltage tolerance for industrial conditions. The radial cable connection type enhances wiring flexibility, while the IP50-rated housing provides moderate protection in indoor environments. Its ambient working temperature range of -10 to 70Β°C and humidity tolerance up to 85% RH ensure consistent performance. Weighing only 120g and shipped with a mounting bracket, it is easy to install and maintain in compact machinery. View full documentation on the official Autonics website for technical drawings and certifications.
Autonics E40HB8-1024-6-L-24 encoders are commonly used in printing machines, automated conveyors, robotics, textile looms, and machine tools. For junior engineers, the model is straightforward to connect and test with PLCs or servo systems. For experienced technicians, its dependable 1024P/R output ensures alignment accuracy during motion tuning. Educational institutions prefer this model to demonstrate real-time rotational measurement, due to its user-friendly design and industrial relevance. If your application requires consistent, high-resolution feedback with reliable performance and simplified installation, this encoder is a strong choice backed by Autonics quality.
