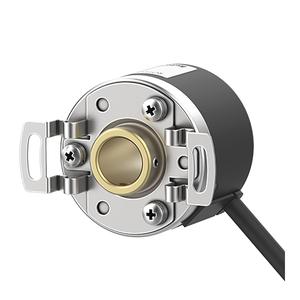

Autonics E40HB8-100-3-T-1 Rotary Encoder
The Autonics E40HB8-100-3-T-1 Rotary Encoder offers Γ8mm shaft inner diameter, 5000rpm Max. allowable revolution, Totem pole, Control output 5-24VDC @(=), Power supply, 100PPR, resolution Radial cable type connection type. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the Autonics E40HB Series.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E40HB8-100-3-T-1 |
Autonics E40HB8-100-3-T-1 Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Shaft inner diameter | Γ8mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 50gf.cm(max. 0.0049N.m) |
| Resolution | 100PPR |
| Output phase | A, B, Z |
| Control output | Totem pole |
| Power supply | 5-24VDC @(=) |
| Connection type | Radial cable type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70β, storage: -25 to 85β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Bracket |
| Weight | Approx. 120g |
Obtain a Quote for 40 mm Incremental Rotary Encoders E40HB8-100-3-T-1 at economical prices. Specifications Overview for E40HB8-100-3-T-1 reveals shaft inner diameter of Γ8mm, designed for precise and smooth rotational measurement. It operates at a maximum allowable revolution of 5000rpm, ensuring high-speed performance. With a resolution of 100PPR, it provides accurate feedback for various applications. The control output is a Totem pole, supported by a power supply 5-24VDC @(=), ensuring stable operation. The connection type is an Radial cable type, adding reliability to the design. Weighing Approx. 120g, this compact encoder is built for efficient integration. It operates in an ambient temperature range of -10 to 70β, storage: -25 to 85β and, with an ambient humidity range of 35 to 85% RH, storage: 35 to 90% RH. Take the First Step with a Quote for your requirement of 40 mm Incremental Rotary Encoders. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
