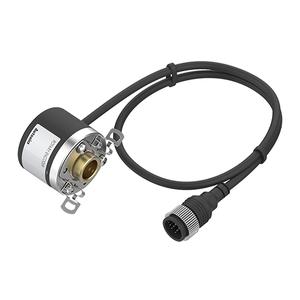

Autonics E40HB8-1-4-L-24-C Rotary Encoder
The Autonics E40HB8-1-4-L-24-C Rotary Encoder offers Γ8mm shaft inner diameter, 5000rpm Max. allowable revolution, Line Driver, Control output 12-24VDC, Power supply, 1P/R, resolution Radial cable connector type connection type. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the Autonics E40HB Series.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E40HB8-1-4-L-24-C |
Autonics E40HB8-1-4-L-24-C Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Shaft inner diameter | Γ8mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 50gf.cm(max. 0.0049N.m) |
| Resolution | 1P/R |
| Output phase | A, @(A^), B, @(B^) |
| Control output | Line Driver |
| Power supply | 12-24VDC |
| Connection type | Radial cable connector type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70β, storage: -25 to 85β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Bracket |
| Weight | Approx. 120g |
IndMALL Automation Dealing offers 40 mm Incremental Rotary Encoders E40HB8-1-4-L-24-C at unbeatable prices. The Main Technical Parameters of E40HB8-1-4-L-24-C are shaft inner diameter of Γ8mm, designed for precise and smooth rotational measurement. It operates at a maximum allowable revolution of 5000rpm, ensuring high-speed performance. With a resolution of 1P/R, it provides accurate feedback for various applications. The control output is a Line Driver, supported by a power supply 12-24VDC, ensuring stable operation. The connection type is an Radial cable connector type, adding reliability to the design. Weighing Approx. 120g, this compact encoder is built for efficient integration. It operates in an ambient temperature range of -10 to 70β, storage: -25 to 85β and, with an ambient humidity range of 35 to 85% RH, storage: 35 to 90% RH. Take the First Step with a Quote for your requirement of 40 mm Incremental Rotary Encoders. Choose us for unparalleled pricing and support over other Dealers & Distributors.
