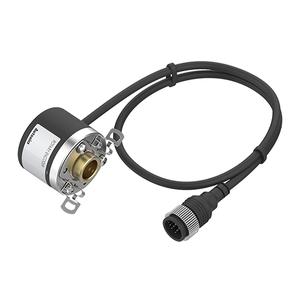

Autonics E40HB6-2500-6-L-24-C Rotary Encoder
The Autonics E40HB6-2500-6-L-24-C Rotary Encoder offers Γ6mm shaft inner diameter, 5000rpm Max. allowable revolution, Line Driver, Control output 12-24VDC, Power supply, 2500P/R, resolution Radial cable connector type connection type. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the Autonics E40HB Series.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E40HB6-2500-6-L-24-C |
Autonics E40HB6-2500-6-L-24-C Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Shaft inner diameter | Γ6mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 50gf.cm(max. 0.0049N.m) |
| Resolution | 2500P/R |
| Output phase | A, @(A^), B, @(B^), Z, @(Z^) |
| Control output | Line Driver |
| Power supply | 12-24VDC |
| Connection type | Radial cable connector type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70β, storage: -25 to 85β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Bracket |
| Weight | Approx. 120g |
Autonics E40HB6-2500-6-L-24-C offers exceptional performance for motion control tasks requiring high resolution and reliability. With a shaft inner diameter of Γ6mm and a maximum speed of 5000rpm, it ensures smooth and accurate rotational sensing in demanding applications. The encoder outputs 2500 pulses per revolution (2500P/R), making it a high-resolution option ideal for servo systems and robotics. Its Line Driver control output transmits six differential phasesβA, @(A^), B, @(B^), Z, @(Z^)βwhich reduce electrical noise and improve long-distance signal integrity. Powered by a flexible 12β24VDC Β±5% supply, it fits easily into both low and mid-voltage industrial control panels. The radial cable connector ensures secure installation, while the IP50 protection rating shields the internal components from dust in semi-controlled environments.
This incremental encoder 40mm is lightweight at approximately 120g and comes with a mounting bracket for quick integration. Itβs engineered to operate within a temperature range of -10Β°C to 70Β°C and withstands ambient humidity up to 85% RH. Backed by Autonicsβ global reputation, manufacturing consistency, and long-term support documentation, this encoder aligns with EEAT principlesβensuring trust, accuracy, and industrial-grade performance. View product details and pricing here for your project or plant upgrade.
Autonics E40HB6-2500-6-L-24-C is widely deployed in servo motors, packaging lines, robotic arms, conveyor tracking systems, and other industrial automation platforms. In high-speed labeling machines, it ensures pulse-accurate synchronization between the print engine and the moving product. In robotics, it allows precise joint positioning with real-time encoder feedback. Maintenance engineers prefer it for its plug-and-play wiring and reliable signal clarity, while engineering students and R&D teams value its role in learning about encoder logic, pulse phase alignment, and motion system calibration. As a high-performance rotary encoder with 2500PPR resolution, it offers a trusted solution where accuracy, durability, and technical reliability are non-negotiable.
