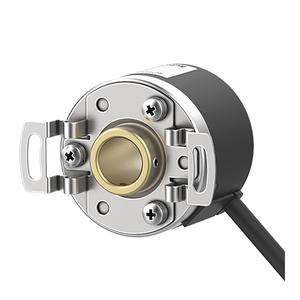

Autonics E40HB6-250-6-L-24 Rotary Encoder
The Autonics E40HB6-250-6-L-24 Rotary Encoder offers Γ6mm shaft inner diameter, 5000rpm Max. allowable revolution, Line Driver, Control output 12-24VDC, Power supply, 250P/R, resolution Radial cable type connection type. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the Autonics E40HB Series.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E40HB6-250-6-L-24 |
Autonics E40HB6-250-6-L-24 Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Shaft inner diameter | Γ6mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 50gf.cm(max. 0.0049N.m) |
| Resolution | 250P/R |
| Output phase | A, @(A^), B, @(B^), Z, @(Z^) |
| Control output | Line Driver |
| Power supply | 12-24VDC |
| Connection type | Radial cable type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70β, storage: -25 to 85β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Bracket |
| Weight | Approx. 120g |
Autonics has built the E40HB6-250-6-L-24 to deliver reliable and efficient feedback for rotary motion systems. This 40 mm incremental encoder comes with a shaft inner diameter of Γ6mm and offers a resolution of 250 P/R, making it ideal for medium-precision positioning tasks. The Line Driver output supports differential signaling, which reduces noise and ensures consistent signal quality even in environments with electrical interference. The device is powered by a 12β24VDC Β±5% ripple power supply and supports a maximum response frequency of 300kHz, enabling smooth integration into fast-moving automation systems.
With a maximum rotational speed of 5000 rpm, the E40HB6-250-6-L-24 meets the demands of modern production lines that require speed without sacrificing stability. The encoder features a radial cable connection for secure installation and is protected by an IP50-rated housing, making it suitable for general-purpose industrial environments. It operates reliably across a wide temperature range from -10Β°C to 70Β°C and tolerates humidity levels up to 85% RH. At just 120g, itβs lightweight and comes with a mounting bracket for quick setup. View the official Autonics encoder catalog for further reference and documentation.
E40HB6-250-6-L-24 encoders are widely used in industrial conveyors, textile machines, labeling systems, and machine tool automation. Maintenance engineers trust this model for its stable pulse output and easy wiring when integrating with PLCs, VFDs, or servo drives. Junior technicians appreciate its straightforward installation process, while senior engineers value the brandβs long-term performance in critical applications. This model is also frequently chosen by engineering colleges for training students on motion control fundamentals. By offering high-speed compatibility, consistent feedback, and simplified integration, Autonics ensures this encoder meets real-world industrial needs with clarity and precision.
