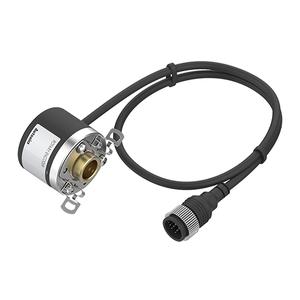

Autonics E40HB12-2500-6-L-24-C Rotary Encoder
The Autonics E40HB12-2500-6-L-24-C Rotary Encoder offers Γ12mm shaft inner diameter, 5000rpm Max. allowable revolution, Line Driver, Control output 12-24VDC, Power supply, 2500P/R, resolution Radial cable connector type connection type. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the Autonics E40HB Series.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E40HB12-2500-6-L-24-C |
Autonics E40HB12-2500-6-L-24-C Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Shaft inner diameter | Γ12mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 50gf.cm(max. 0.0049N.m) |
| Resolution | 2500P/R |
| Output phase | A, @(A^), B, @(B^), Z, @(Z^) |
| Control output | Line Driver |
| Power supply | 12-24VDC |
| Connection type | Radial cable connector type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70β, storage: -25 to 85β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Bracket |
| Weight | Approx. 120g |
Autonics has developed the E40HB12-2500-6-L-24-C to deliver precise rotational position and speed feedback in industrial control systems. This 40 mm Incremental Rotary Encoder features a shaft inner diameter of Γ12mm and offers an exceptional resolution of 2500 pulses per revolution (P/R), ensuring accurate signal output even in high-speed environments. The maximum response frequency of 300kHz supports fast, real-time control, while the maximum allowable revolution speed of 5000rpm ensures optimal performance in motor feedback and motion detection. The Line Driver output is designed to maintain signal integrity over long distances, powered by a stable 12β24VDC supply. Installation is simplified with the radial cable connector type, and the IP50-rated body protects against dust and particulate ingress. It also supports a wide ambient temperature range from -10Β°C to 70Β°C and storage up to 85Β°C, making it suitable for both shop floor and field installations. Weighing approximately 120g, it offers a compact yet rugged design for versatile integration. For official specifications, refer to Autonicsβ product catalog.
Autonics E40HB12-2500-6-L-24-C is widely chosen for applications in CNC machines, printing equipment, conveyor belts, robotic arms, labeling machines, and textile manufacturing systems. It offers smooth integration with PLCs and motion controllers for real-time encoder-based control. Maintenance engineers appreciate its plug-and-play design, reducing installation and troubleshooting time. With a high-resolution output and robust build, this encoder is especially valuable in scenarios requiring precise speed monitoring, directional tracking, or homing sequences. Whether you're working in a manufacturing plant or upgrading legacy equipment, this model brings the accuracy and reliability needed to maintain continuous, high-efficiency operation.
In academic labs and technical colleges, the Autonics 40 mm incremental encoder is also used to teach core automation principles such as encoder signal decoding, pulse counting, and closed-loop control systems. Its predictable behavior, industry-standard wiring, and compatibility with most programmable logic controllers make it an excellent choice for educational and pilot projects. This model stands out not just for its specs, but for its dependability in the fieldβtrusted by Indian industry professionals and students alike.
