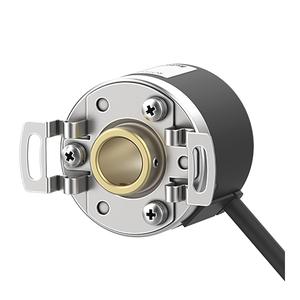

Autonics E40HB12-100-3-N-24 Rotary Encoder
The Autonics E40HB12-100-3-N-24 Rotary Encoder offers Γ12mm shaft inner diameter, 5000rpm Max. allowable revolution, NPN open collector, Control output 12-24VDC, Power supply, 100P/R, resolution Radial cable type connection type. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the Autonics E40HB Series.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E40HB12-100-3-N-24 |
Autonics E40HB12-100-3-N-24 Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Shaft inner diameter | Γ12mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 50gf.cm(max. 0.0049N.m) |
| Resolution | 100P/R |
| Output phase | A, B, Z |
| Control output | NPN open collector |
| Power supply | 12-24VDC |
| Connection type | Radial cable type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70β, storage: -25 to 85β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Bracket |
| Weight | Approx. 120g |
Please speak to our Technical Engineer for 40 mm Incremental Rotary Encoder E40HB12-100-3-N-24 at attractive prices. Technical Specs Summary of E40HB12-100-3-N-24 includes shaft inner diameter of Γ12mm, designed for precise and smooth rotational measurement. It operates at a maximum allowable revolution of 5000rpm, ensuring high-speed performance. With a resolution of 100P/R, it provides accurate feedback for various applications. The control output is a NPN open collector, supported by a power supply 12-24VDC, ensuring stable operation. The connection type is an Radial cable type, adding reliability to the design. Weighing Approx. 120g, this compact encoder is built for efficient integration. It operates in an ambient temperature range of -10 to 70β, storage: -25 to 85β and, with an ambient humidity range of 35 to 85% RH, storage: 35 to 90% RH. Match Your Needs with a Quote for your requirement of 40 mm Incremental Rotary Encoder. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
