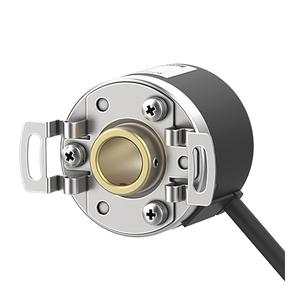

Autonics E40HB10-60-6-L-24 Rotary Encoder
The Autonics E40HB10-60-6-L-24 Rotary Encoder offers Γ10mm shaft inner diameter, 5000rpm Max. allowable revolution, Line Driver, Control output 12-24VDC, Power supply, 60P/R, resolution Radial cable type connection type. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the Autonics E40HB Series.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E40HB10-60-6-L-24 |
Autonics E40HB10-60-6-L-24 Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Shaft inner diameter | Γ10mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 50gf.cm(max. 0.0049N.m) |
| Resolution | 60P/R |
| Output phase | A, @(A^), B, @(B^), Z, @(Z^) |
| Control output | Line Driver |
| Power supply | 12-24VDC |
| Connection type | Radial cable type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70β, storage: -25 to 85β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Bracket |
| Weight | Approx. 120g |
Give Us a Call for 40 mm Incremental Rotary Encoders E40HB10-60-6-L-24 at the lowest pricing. In-depth Technical Analysis of E40HB10-60-6-L-24 feature shaft inner diameter of Γ10mm, designed for precise and smooth rotational measurement. It operates at a maximum allowable revolution of 5000rpm, ensuring high-speed performance. With a resolution of 60P/R, it provides accurate feedback for various applications. The control output is a Line Driver, supported by a power supply 12-24VDC, ensuring stable operation. The connection type is an Radial cable type, adding reliability to the design. Weighing Approx. 120g, this compact encoder is built for efficient integration. It operates in an ambient temperature range of -10 to 70β, storage: -25 to 85β and, with an ambient humidity range of 35 to 85% RH, storage: 35 to 90% RH. Elevate Your Project with a Quote for your requirement of 40 mm Incremental Rotary Encoders. Our promise More affordable pricing and more personalized support than other Distributors & Dealers.
