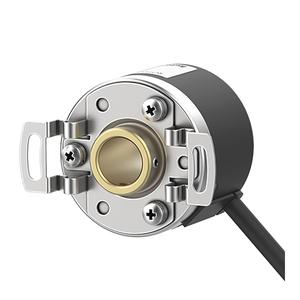

Autonics E40HB10-3600-2-T-24 Rotary Encoder
The Autonics E40HB10-3600-2-T-24 Rotary Encoder offers Γ10mm shaft inner diameter, 5000rpm Max. allowable revolution, Totem pole, Control output 12-24VDC, Power supply, 3600P/R, resolution Radial cable type connection type. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the Autonics E40HB Series.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E40HB10-3600-2-T-24 |
Autonics E40HB10-3600-2-T-24 Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Shaft inner diameter | Γ10mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 50gf.cm(max. 0.0049N.m) |
| Resolution | 3600P/R |
| Output phase | A, B |
| Control output | Totem pole |
| Power supply | 12-24VDC |
| Connection type | Radial cable type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70β, storage: -25 to 85β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Bracket |
| Weight | Approx. 120g |
Autonics has engineered the E40HB10-3600-2-T-24 to deliver exceptional accuracy with a high resolution of 3600 pulses per revolution (P/R), making it ideal for applications that require fine-grained motion control. Designed with a Γ10mm shaft inner diameter, this 40mm incremental rotary encoder operates smoothly up to 5000 rpm, supported by a maximum response frequency of 300kHz. The Totem pole output ensures compatibility with standard logic inputs, while the stable 12β24VDC Β±5% power input ensures uninterrupted performance in control systems with minor voltage fluctuations.
This encoder comes in a radial cable type connection, optimizing wiring flexibility and signal integrity in tight enclosures. Its IP50 protection rating safeguards the internals against dust in most industrial environments. The unit is built to perform in tough conditions, tolerating temperatures from -10Β°C to 70Β°C and humidity levels up to 85% RH during operation. Lightweight at just 120g and supplied with a bracket, the encoder ensures easy mounting and integration into existing systems. For more details, visit the official Autonics product catalog.
Autonics encoders like the E40HB10-3600-2-T-24 are widely used in CNC machinery, robotic arms, packaging conveyors, textile machines, and automated inspection systems. Maintenance engineers prefer its consistent performance and fast setup in OEM and retrofit scenarios. For junior technicians, the encoderβs simple connection and compact body make field replacements quick and hassle-free. Engineering faculty and students often use this encoder in academic projects involving motion control, due to its high resolution and stable output. Whether itβs detecting fine angular shifts or synchronizing motor movement in high-speed equipment, this model supports precision automation where reliability is non-negotiable.
