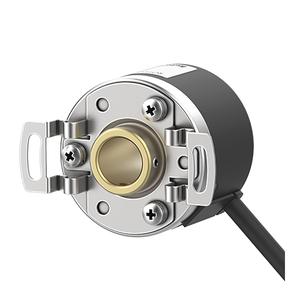

Autonics E40HB10-1500-6-L-5 Rotary Encoder
The Autonics E40HB10-1500-6-L-5 Rotary Encoder offers Ø10mm shaft inner diameter, 5000rpm Max. allowable revolution, Line Driver, Control output 5VDC, Power supply, 1500P/R, resolution Radial cable type connection type. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the Autonics E40HB Series.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E40HB10-1500-6-L-5 |
Autonics E40HB10-1500-6-L-5 Rotary Encoder – Technical Specifications
| Specification | Value |
|---|---|
| Shaft inner diameter | Ø10mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 50gf.cm(max. 0.0049N.m) |
| Resolution | 1500P/R |
| Output phase | A, @(A^), B, @(B^), Z, @(Z^) |
| Control output | Line Driver |
| Power supply | 5VDC |
| Connection type | Radial cable type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Bracket |
| Weight | Approx. 120g |
Autonics E40HB10-1500-6-L-5 is a high-performance incremental rotary encoder featuring a shaft diameter of Ø10mm and a resolution of 1500 pulses per revolution (P/R). This high resolution makes it ideal for fine-motion control tasks such as servo motor feedback and speed regulation in automated systems. The encoder operates smoothly at up to 5000rpm and supports a response frequency of 300kHz, allowing precise pulse generation even at high speeds. Its Line Driver output ensures signal integrity over long distances and enhances noise immunity, making it dependable in electrically noisy industrial environments. The 5VDC ±5% power supply with low ripple tolerance guarantees consistent performance across a wide range of applications.
With a radial cable connection and compact body weighing just 120g, this encoder is easy to install even in space-constrained control panels. The included mounting bracket adds installation flexibility, while the IP50 protection rating safeguards internal components from dust ingress. It operates reliably within an ambient temperature range of -10°C to 70°C and tolerates ambient humidity levels from 35% to 85% RH, ensuring durability in real-world industrial settings. The compact and rugged design minimizes maintenance, which is critical for continuous, long-term operation in automated factories.
E40HB10-1500-6-L-5 is commonly used in packaging machinery, CNC equipment, robotics, conveyor systems, and motor-driven automation lines. Its high pulse resolution ensures smooth velocity control and position tracking, improving precision in motion-based tasks. Maintenance engineers value its robust build and consistent output for critical feedback loops, while engineering students often use this model to understand encoder integration with PLCs and drives. Trusted by manufacturers for its dependable performance and backed by Autonics' reputation for quality, this encoder is a preferred choice for building smarter, more responsive industrial systems.
