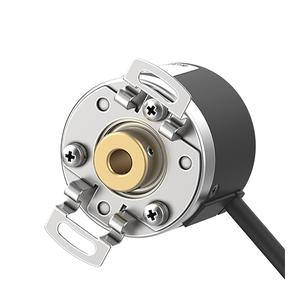

Autonics E40H8-800-6-L-5 Rotary Encoder
The Autonics E40H8-800-6-L-5 Rotary Encoder offers ร8mm shaft inner diameter, 5000rpm Max. allowable revolution, Line Driver, Control output 5VDC, Power supply, 800P/R, resolution Radial cable type connection type. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the Autonics E40H Series.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E40H8-800-6-L-5 |
Autonics E40H8-800-6-L-5 Rotary Encoder โ Technical Specifications
| Specification | Value |
|---|---|
| Shaft inner diameter | ร8mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 50gf.cm(max. 0.0049N.m) |
| Resolution | 800P/R |
| Output phase | A, @(A^), B, @(B^), Z, @(Z^) |
| Control output | Line Driver |
| Power supply | 5VDC |
| Connection type | Radial cable type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70โ, storage: -25 to 85โ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Bracket |
| Weight | Approx. 120g |
The Autonics E40H8-800-6-L-5 offers a resolution of 800 pulses per revolution (P/R), making it a reliable choice for mid-to-high precision rotary measurement applications. It supports a maximum allowable revolution of 5000rpm, and its shaft inner diameter of ร8mm makes it compatible with various standard shaft sizes. The encoder features a Line Driver output with A, B, Z channels and complementary phases (A^, B^, Z^), enhancing noise immunity and ensuring long-distance transmission in demanding environments. Powered by a stable 5VDC ยฑ5% supply and with a maximum response frequency of 300kHz, this encoder offers fast and stable pulse generation. Its radial cable type connection and included bracket simplify mounting and wiring, while the IP50 protection rating provides basic dust resistance for use in clean industrial setups. It is lightweight at approximately 120g and can operate in ambient temperatures ranging from -10ยฐC to 70ยฐC and humidity levels of 35% to 85% RH.
As part of the trusted E40H8 series, the E40H8-800-6-L-5 is widely used by engineers who require accurate rotary feedback in fast-moving automation setups. Its Line Driver output supports differential signal transmission, making it suitable for environments with electrical noise or when long cable runs are necessary. Thanks to its low starting torque of just 50gf.cm, it integrates smoothly with motors and rotary shafts without adding load or resistance. Maintenance professionals appreciate its dependable performance and ease of replacement in control panels, while system integrators value the encoderโs plug-and-play compatibility with standard PLCs and motion controllers. Built to Autonicsโ strict quality standards, this model delivers consistent and durable performance over time.
In real-world scenarios, the Autonics 40 mm Incremental Rotary Encoder is commonly deployed in CNC machines, conveyor systems, automated inspection units, and robotic arms where pulse resolution, electrical noise resistance, and long signal transmission matter. Maintenance engineers use it to detect motor shaft speed or count rotation pulses in indexing tables. For engineering students and automation trainees, it offers a clear demonstration of quadrature signals and encoder-based feedback systems. This modelโs 800P/R resolution strikes a balance between cost and accuracy, making it ideal for mid-range motion control needs. If your project requires reliable encoder performance with differential output and high signal integrity, the E40H8-800-6-L-5 is a dependable solution. Visit the official Autonics product page for full specifications and documentation.
