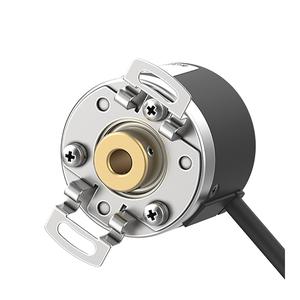

Autonics E40H8-360-3-T-24 40 mm Incremental Rotary Encoder
The E40H8-360-3-T-24 is a 40 mm incremental rotary encoder providing 360P/R resolution, 300kHz response frequency, and 5000rpm operation industrial automation. Manufactured by Autonics, this Autonics 40 mm Incremental Rotary Encoder belongs to the Autonics Rotary Encoder range and the E40H Series, featuring Ø8mm shaft diameter, Totem pole output, 12–24VDC power supply, IP50 protection, A/B/Z phases, radial cable connection, and approximately 120g weight.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E40H8-360-3-T-24 |
Autonics E40H8-360-3-T-24 40 mm Incremental Rotary Encoder – Technical Specifications
| Specification | Value |
|---|---|
| Shaft inner diameter | Ø8mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 50gf.cm(max. 0.0049N.m) |
| Resolution | 360P/R |
| Output phase | A, B, Z |
| Control output | Totem pole |
| Power supply | 12-24VDC |
| Connection type | Radial cable type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Bracket |
| Weight | Approx. 120g |
The Autonics E40H8-360-3-T-24 40 mm Incremental Rotary Encoder is a defined motion feedback component used in industrial automation systems. The E40H8-360-3-T-24 encoder provides 360P/R resolution, supports a maximum 300kHz response frequency, and operates up to 5000rpm. Powered by a 12–24VDC supply, it is part of the E40H Series applied across automation environments in India.
The E40H8-360-3-T-24 encoder is used in conveyors, packaging equipment, assembly machines, and automated production systems. This rotary encoder E40H8-360-3-T-24 delivers stable pulse signals for speed and position monitoring, enabling reliable synchronization with PLCs and counters. A, B, Z phase outputs with Totem pole control output support consistent signal transmission in control panels.
The E40H8-360-3-T-24 rotary encoder combines controlled starting torque, IP50 protection structure, and radial cable wiring for enclosed installations. This E40H8-360-3-T-24 encoder supports continuous-duty operation where stable rotational feedback is required. As an Autonics 40 mm Incremental Rotary Encoder, it fits structured industrial automation architectures requiring repeatable and dependable performance.
