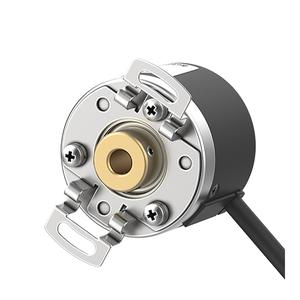

Autonics E40H8-2500-6-L-5 40 mm Incremental Rotary Encoder
The E40H8-2500-6-L-5 is a 40 mm incremental rotary encoder delivering 2500P/R resolution, 300kHz response, and 5000rpm operation industrial automation applications. Manufactured by Autonics, this Autonics 40 mm Incremental Rotary Encoder belongs to the Autonics Rotary Encoder category and the E40H Series, featuring Ø8mm shaft diameter, Line Driver output, 5VDC power supply, IP50 protection, A/B/Z phases, radial cable connection, and approximately 120g weight.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E40H8-2500-6-L-5 |
Autonics E40H8-2500-6-L-5 40 mm Incremental Rotary Encoder – Technical Specifications
| Specification | Value |
|---|---|
| Shaft inner diameter | Ø8mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 50gf.cm(max. 0.0049N.m) |
| Resolution | 2500P/R |
| Output phase | A, @(A^), B, @(B^), Z, @(Z^) |
| Control output | Line Driver |
| Power supply | 5VDC |
| Connection type | Radial cable type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Bracket |
| Weight | Approx. 120g |
The Autonics E40H8-2500-6-L-5 40 mm Incremental Rotary Encoder is a defined motion feedback device used in industrial automation systems. The E40H8-2500-6-L-5 encoder provides 2500P/R resolution, supports a maximum 300kHz response frequency, and operates up to 5000rpm. Using a 5VDC supply with Line Driver output, it belongs to the E40H Series applied across industrial installations in India.
The E40H8-2500-6-L-5 encoder is installed in conveyors, packaging machinery, automated assembly lines, and control-oriented production equipment. This rotary encoder E40H8-2500-6-L-5 ensures stable differential pulse transmission for speed and position monitoring, enabling reliable communication with PLCs and motion controllers. The increamental encoder E40H8-2500-6-L-5 supports consistent signal integrity in electrically noisy control panels.
The E40H8-2500-6-L-5 rotary encoder combines controlled starting torque, IP50 protection structure, and radial cable wiring for enclosed industrial environments. This encoder E40H8-2500-6-L-5 supports continuous-duty operation where accurate rotational feedback is required. As an Autonics 40 mm Incremental Rotary Encoder, it aligns with structured automation architectures requiring dependable and repeatable performance.
