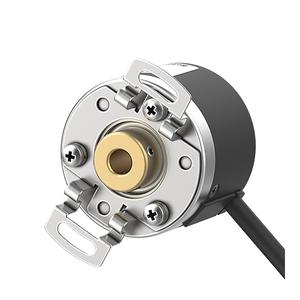

Autonics E40H8-1024-3-T-24 40 mm Incremental Rotary Encoder
E40H8-1024-3-T-24 is a 40 mm incremental rotary encoder delivering 1024P/R resolution, 300kHz response, and 5000rpm operation industrial automation applications. Manufactured by Autonics, this Autonics 40 mm Incremental Rotary Encoder is part of the Autonics Rotary Encoder category and the E40H Series, featuring Ø8mm shaft diameter, Totem pole output, 12–24VDC power supply, IP50 protection, A/B/Z output phases, radial cable connection, and approximately 120g weight.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E40H8-1024-3-T-24 |
Autonics E40H8-1024-3-T-24 40 mm Incremental Rotary Encoder – Technical Specifications
| Specification | Value |
|---|---|
| Shaft inner diameter | Ø8mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 50gf.cm(max. 0.0049N.m) |
| Resolution | 1024P/R |
| Output phase | A, B, Z |
| Control output | Totem pole |
| Power supply | 12-24VDC |
| Connection type | Radial cable type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Bracket |
| Weight | Approx. 120g |
The Autonics E40H8-1024-3-T-24 40 mm Incremental Rotary Encoder is a defined feedback device used in industrial automation systems. The E40H8-1024-3-T-24 encoder provides 1024P/R resolution, supports a maximum 300kHz response frequency, and operates up to 5000rpm. Powered by a 12–24VDC supply, it belongs to the E40H Series used across industrial installations in India.
The E40H8-1024-3-T-24 encoder is applied in conveyors, packaging machinery, automated assembly lines, and production equipment. This rotary encoder E40H8-1024-3-T-24 delivers stable pulse signals for speed and position monitoring, supporting reliable interaction with PLCs and counters. A, B, Z phase outputs with Totem pole control output enable consistent signal handling within control panels.
The E40H8-1024-3-T-24 rotary encoder combines controlled starting torque, IP50 protection structure, and radial cable wiring for enclosed industrial environments. This E40H8-1024-3-T-24 encoder supports continuous-duty operation where stable rotational feedback is required. As an Autonics 40 mm Incremental Rotary Encoder, it aligns with structured automation architectures demanding repeatable and dependable performance.
