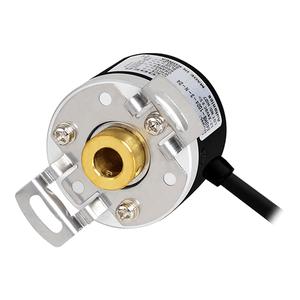

Autonics E40H8-100-3-T-24 40 mm Incremental Rotary Encoder
The E40H8-100-3-T-24 is a 40 mm incremental rotary encoder delivering 100P/R resolution, 300kHz response, and 5000rpm operation industrial automation applications. Manufactured by Autonics, this Autonics 40 mm Incremental Rotary Encoder belongs to the rotary encoder category and the E40H Series, featuring Ø8mm shaft diameter, Totem pole output, 12–24VDC power supply, IP50 protection, A/B/Z phases, radial cable connection, and approximately 120g weight.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E40H8-100-3-T-24 |
Autonics E40H8-100-3-T-24 40 mm Incremental Rotary Encoder – Technical Specifications
| Specification | Value |
|---|---|
| Shaft inner diameter | Ø8mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 50gf.cm(max. 0.0049N.m) |
| Resolution | 100P/R |
| Output phase | A, B, Z |
| Control output | Totem pole |
| Power supply | 12-24VDC |
| Connection type | Radial cable type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Bracket |
| Weight | Approx. 120g |
The Autonics E40H8-100-3-T-24 40 mm Incremental Rotary Encoder is a defined feedback component used in industrial automation systems. The E40H8-100-3-T-24 encoder provides 100P/R resolution, supports a maximum 300kHz response frequency, and operates up to 5000rpm. Powered by a 12–24VDC supply with Totem pole output, it belongs to the E40H Series used across industrial installations in India.
The E40H8-100-3-T-24 encoder is applied in conveyors, packaging machines, assembly stations, and automated production equipment. This rotary encoder E40H8-100-3-T-24 delivers stable pulse signals for speed and position monitoring, enabling reliable coordination with PLCs and counters. Its A, B, Z phase outputs support consistent signal handling in control panels.
The E40H8-100-3-T-24 rotary encoder combines controlled starting torque, IP50 protection structure, and radial cable wiring for enclosed installations. This encoder E40H8-100-3-T-24 supports continuous-duty operation where repeatable rotational feedback is required. As an Autonics 40 mm Incremental Rotary Encoder, it aligns with structured industrial automation architectures demanding dependable performance.
