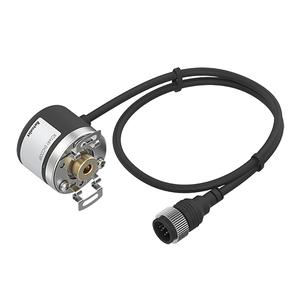

Autonics E40H6-1800-6-L-24-C Rotary Encoder
The Autonics E40H6-1800-6-L-24-C Rotary Encoder offers Γ6mm shaft inner diameter, 5000rpm Max. allowable revolution, Line Driver, Control output 12-24VDC, Power supply, 1800P/R, resolution Radial cable connector type connection type. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the Autonics E40H Series.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E40H6-1800-6-L-24-C |
Autonics E40H6-1800-6-L-24-C Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Shaft inner diameter | Γ6mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 50gf.cm(max. 0.0049N.m) |
| Resolution | 1800P/R |
| Output phase | A, @(A^), B, @(B^), Z, @(Z^) |
| Control output | Line Driver |
| Power supply | 12-24VDC |
| Connection type | Radial cable connector type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70β, storage: -25 to 85β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Bracket |
| Weight | Approx. 120g |
Send Your Inquiry for 40mm Incremental Rotary Encoder E40H6-1800-6-L-24-C with cost-effective solutions. Essential Technical Specs of E40H6-1800-6-L-24-C are shaft inner diameter of Γ6mm, making it suitable for precise rotational measurements. The encoder supports a maximum response frequency of 300kHz, ensuring accurate signal processing for high-speed operations. It operates at a maximum allowable revolution of 5000rpm and features a starting torque of Max. 50gf.cm(max. 0.0049N.m) designed for smooth performance. The control output is a Line Driver, powered by a 12-24VDC for stable functionality. It features an Radial cable connector type connection for enhanced reliability. The encoder operates within an ambient temperature range of -10 to 70β, storage: -25 to 85β. Ambient humidity ranges from 35 to 85% RH, storage: 35 to 90% RH during storage. Capture the Best Deal with a Quote for your requirement of 40mm Incremental Rotary Encoder. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
