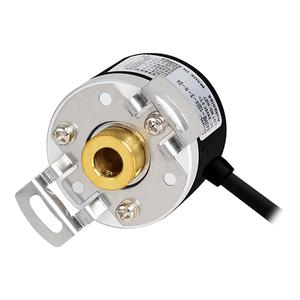

Autonics E40H12-256-3-N-24 Rotary Encoder
The Autonics E40H12-256-3-N-24 Rotary Encoder offers Ø12mm shaft inner diameter, 5000rpm Max. allowable revolution, NPN open collector, Control output 12-24VDC, Power supply, 256P/R, resolution Radial cable type connection type. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the Autonics E40H Series.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E40H12-256-3-N-24 |
Autonics E40H12-256-3-N-24 Rotary Encoder – Technical Specifications
| Specification | Value |
|---|---|
| Shaft inner diameter | Ø12mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 50gf.cm(max. 0.0049N.m) |
| Resolution | 256P/R |
| Output phase | A, B, Z |
| Control output | NPN open collector |
| Power supply | 12-24VDC |
| Connection type | Radial cable type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Bracket |
| Weight | Approx. 120g |
Get A Quote for 40 mm Incremental Rotary Encoders E40H12-256-3-N-24 at the best price. Here are the brief Technical Specifications of E40H12-256-3-N-24 are shaft inner diameter of Ø12mm, making it suitable for precise rotational measurements. The encoder supports a maximum response frequency of 300kHz, ensuring accurate signal processing for high-speed operations. It operates at a maximum allowable revolution of 5000rpm and features a starting torque of Max. 50gf.cm(max. 0.0049N.m) designed for smooth performance. The control output is a NPN open collector, powered by a 12-24VDC for stable functionality. It features an Radial cable type connection for enhanced reliability. The encoder operates within an ambient temperature range of -10 to 70℃, storage: -25 to 85℃. Ambient humidity ranges from 35 to 85% RH, storage: 35 to 90% RH during storage. It's Time to get a Quote for your requirement of 40 mm Incremental Rotary Encoders. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
