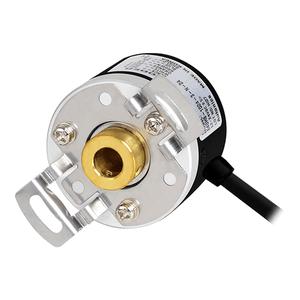

Autonics E40H10-45-3-T-24 Rotary Encoder
The Autonics E40H10-45-3-T-24 Rotary Encoder offers Γ10mm shaft inner diameter, 5000rpm Max. allowable revolution, Totem pole, Control output 12-24VDC, Power supply, 45P/R, resolution Radial cable type connection type. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the Autonics E40H Series.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E40H10-45-3-T-24 |
Autonics E40H10-45-3-T-24 Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Shaft inner diameter | Γ10mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 50gf.cm(max. 0.0049N.m) |
| Resolution | 45P/R |
| Output phase | A, B, Z |
| Control output | Totem pole |
| Power supply | 12-24VDC |
| Connection type | Radial cable type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70β, storage: -25 to 85β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Bracket |
| Weight | Approx. 120g |
IndMALL Automation Dealing offers 40 mm Incremental Rotary Encoders E40H10-45-3-T-24 at unbeatable prices. The Main Technical Parameters of E40H10-45-3-T-24 are shaft inner diameter of Γ10mm, making it suitable for precise rotational measurements. The encoder supports a maximum response frequency of 300kHz, ensuring accurate signal processing for high-speed operations. It operates at a maximum allowable revolution of 5000rpm and features a starting torque of Max. 50gf.cm(max. 0.0049N.m) designed for smooth performance. The control output is a Totem pole, powered by a 12-24VDC for stable functionality. It features an Radial cable type connection for enhanced reliability. The encoder operates within an ambient temperature range of -10 to 70β, storage: -25 to 85β. Ambient humidity ranges from 35 to 85% RH, storage: 35 to 90% RH during storage. Take the First Step with a Quote for your requirement of 40 mm Incremental Rotary Encoders. Choose us for unparalleled pricing and support over other Dealers & Distributors.
