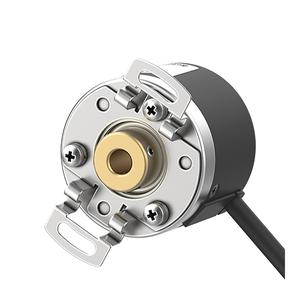

Autonics E40H10-1000-3-T-24 40 mm Incremental Rotary Encoder
E40H10-1000-3-T-24 is a 40 mm incremental rotary encoder providing 1000P/R resolution, 300kHz response frequency, and 5000rpm operation industrial automation. Manufactured by Autonics, this Autonics 40 mm Incremental Rotary Encoder belongs to the rotary encoder category and the E40H Series, featuring Ø10mm shaft diameter, Totem pole output, 12–24VDC power supply, IP50 protection, A/B/Z phases, radial cable connection, and approximately 120g weight.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E40H10-1000-3-T-24 |
Autonics E40H10-1000-3-T-24 40 mm Incremental Rotary Encoder – Technical Specifications
| Specification | Value |
|---|---|
| Shaft inner diameter | Ø10mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 50gf.cm(max. 0.0049N.m) |
| Resolution | 1000P/R |
| Output phase | A, B, Z |
| Control output | Totem pole |
| Power supply | 12-24VDC |
| Connection type | Radial cable type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Bracket |
| Weight | Approx. 120g |
The Autonics E40H10-1000-3-T-24 40 mm Incremental Rotary Encoder is a defined motion feedback device used in industrial automation systems. The E40H10-1000-3-T-24 encoder provides 1000P/R resolution, supports a maximum 300kHz response frequency, and allows rotational speeds up to 5000rpm. It operates on a 12–24VDC power supply and belongs to the E40H Series used across automation installations in India.
The E40H10-1000-3-T-24 encoder is commonly applied in conveyors, packaging machines, assembly systems, and automated production lines. The rotary encoder E40H10-1000-3-T-24 delivers stable pulse output for speed and position monitoring, enabling consistent synchronization with PLCs and counters. Its A, B, Z phase signals with Totem pole output support reliable signal handling in control panels.
The E40H10-1000-3-T-24 rotary encoder combines controlled starting torque, IP50 protection structure, and radial cable wiring for enclosed installations. This E40H10-1000-3-T-24 encoder supports continuous-duty operation in industrial environments. As an Autonics 40 mm Incremental Rotary Encoder, it aligns with structured automation architectures requiring repeatable and stable rotational feedback.
