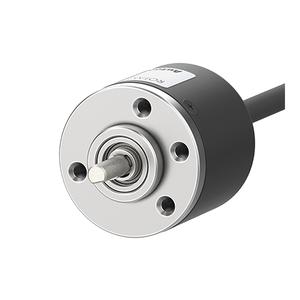

Autonics E30S4-500-3-T-24 Rotary Encoder
The Autonics E30S4-500-3-T-24 rotary encoder delivers precise position sensing using a 500P/R resolution and supports a 5000rpm maximum speed. This model features a Ø4mm shaft diameter, totem pole control output, 12–24VDC power, and an IP50 protection structure. Manufactured by Autonics, it is part of the Autonics rotary encoder range and aligns with the E30S Series, offering a compact axial-cable type connection suited for industrial automation requirements.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E30S4-500-3-T-24 |
Autonics E30S4-500-3-T-24 Rotary Encoder – Technical Specifications
| Specification | Value |
|---|---|
| Shaft outer diameter | Ø4mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 20gf.cm(max. 0.00196N.m) |
| Resolution | 500P/R |
| Output phase | A, B, Z |
| Control output | Totem pole |
| Power supply | 12-24VDC |
| Connection type | Axial cable type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Ø4mm coupling |
| Weight | Approx. 80g |
The Autonics E30S4-500-3-T-24 rotary encoder provides stable position sensing with a 500P/R resolution, 5000rpm capability, totem pole output, and 12–24VDC operation. This encoder belongs to the Autonics E30S Series and supports accurate rotary measurement functions widely required in industrial automation environments.
This model is suitable for conveyors, packaging lines, indexing mechanisms, and assembly systems where consistent rotational data is essential. Its axial cable connection and compact Ø4mm shaft design help maintain dependable performance, while the protected structure ensures stable operation across routine automation tasks.
The Autonics E30S4-500-3-T-24 rotary encoder reinforces reliability through its key specifications, including 500P/R resolution and 5000rpm support. As part of the E30S Series, it remains a dependable choice for engineers seeking consistent measurement output, long-term stability, and brand-backed performance in industrial automation applications.
