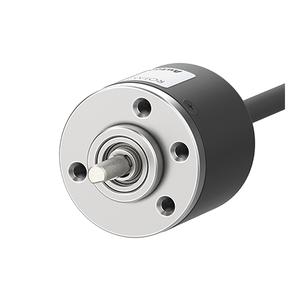

Autonics E30S4-360-3-N-5 Rotary Encoder
The Autonics E30S4-360-3-N-5 Rotary Encoder offers Γ4mm shaft outer diameter, 5000rpm Max. allowable revolution, NPN open collector, Control output 5VDC, Power supply, 360P/R, resolution Axial cable type connection type. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the Autonics E30S Series.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E30S4-360-3-N-5 |
Autonics E30S4-360-3-N-5 Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Shaft outer diameter | Γ4mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 20gf.cm(max. 0.00196N.m) |
| Resolution | 360P/R |
| Output phase | A, B, Z |
| Control output | NPN open collector |
| Power supply | 5VDC |
| Connection type | Axial cable type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70β, storage: -25 to 85β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Γ4mm coupling |
| Weight | Approx. 80g |
Ask for the Pricing of 30 mm Incremental Rotary Encoders E30S4-360-3-N-5 at unbeatable prices. Detailed Specifications of E30S4-360-3-N-5 features shaft outer diameter of Γ4mm for precise applications. The encoder supports a maximum response frequency of 300kHz and an allowable revolution speed of 5000rpm, ensuring efficient performance in demanding environments. With a resolution of 360P/R, it provides accurate signal output. The control output is a NPN open collector, designed to operate seamlessly with a power supply 5VDC. The encoder comes with an Axial cable type connection for easy integration into various systems. Its operational temperature range is -10 to 70β, storage: -25 to 85β. Humidity levels are supported at 35 to 85% RH, storage: 35 to 90% RH during storage. Now's the Time to Secure a Quote for your requirement of 30 mm Incremental Rotary Encoders. We're committed to offering more favorable pricing and more responsive support than other Traders.
