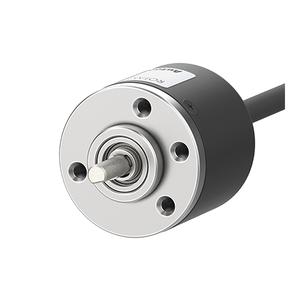

Autonics E30S4-100-3-T-24 Rotary Encoder
The Autonics E30S4-100-3-T-24 rotary encoder provides accurate shaft monitoring using a 100P/R resolution and 5000rpm rotational capability. This encoder includes a Ø4mm shaft diameter, totem pole control output, 12–24VDC power supply, and IP50 protection. Manufactured by Autonics, it belongs to the Autonics rotary encoder lineup and operates within the E30S Series, featuring a compact axial cable type connection suited for industrial automation environments.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E30S4-100-3-T-24 |
Autonics E30S4-100-3-T-24 Rotary Encoder – Technical Specifications
| Specification | Value |
|---|---|
| Shaft outer diameter | Ø4mm |
| Max. response frequency | 300kHz |
| Max. allowable revolution | 5000rpm |
| Starting torque | Max. 20gf.cm(max. 0.00196N.m) |
| Resolution | 100P/R |
| Output phase | A, B, Z |
| Control output | Totem pole |
| Power supply | 12-24VDC |
| Connection type | Axial cable type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70℃, storage: -25 to 85℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Ø4mm coupling |
| Weight | Approx. 80g |
The Autonics E30S4-100-3-T-24 rotary encoder delivers consistent measurement performance through its 100P/R resolution, 5000rpm capability, 12–24VDC supply, and totem pole output. As part of the Autonics E30S Series, this model supports reliable rotational sensing required across industrial automation tasks where compact form and steady output are essential.
This encoder fits well into conveyor systems, packaging lines, assembly equipment, and general automation mechanisms. Its axial cable type connection and Ø4mm shaft design assist in stable installation, while the protected structure helps maintain consistent operation under typical industrial conditions, ensuring dependable positional feedback for motion control applications.
The Autonics E30S4-100-3-T-24 rotary encoder combines practical specifications such as 100P/R resolution and 5000rpm operation with Autonics brand reliability. Its role within the E30S Series reinforces suitability for industrial measurement tasks where accuracy, durability, and stable output are necessary for long-term automation performance.
