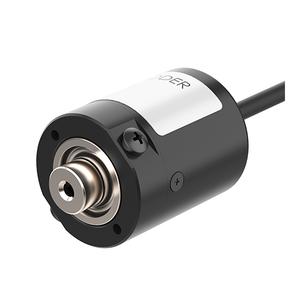

Autonics E20HB3-360-6-L-5-R Rotary Encoder
The Autonics E20HB3-360-6-L-5-R Rotary Encoder offers Γ3mm shaft inner diameter, 6000rpm Max. allowable revolution, Line Driver, Control output 5VDC, Power supply, 360P/R, resolution Axial cable type connection type. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the Autonics E20HB Series.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E20HB3-360-6-L-5-R |
Autonics E20HB3-360-6-L-5-R Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Shaft inner diameter | Γ3mm |
| Max. response frequency | 100kHz |
| Max. allowable revolution | 6000rpm |
| Starting torque | Max. 5gf.cm(max. 0.00049N.m) |
| Resolution | 360P/R |
| Output phase | A, @(A^), B, @(B^), Z, @(Z^) |
| Control output | Line Driver |
| Power supply | 5VDC |
| Connection type | Axial cable type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70β, storage: -20 to 80β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Bracket |
| Weight | Approx. 35g |
Obtain a Quote for 20 mm Incremental Rotary Encoder E20HB3-360-6-L-5-R at economical prices. Specifications Overview for E20HB3-360-6-L-5-R reveals shaft inner diameter of Γ3mm, designed for precise and smooth rotational measurement. It operates at a maximum allowable revolution of 6000rpm, ensuring high-speed performance. With a resolution of 360P/R, it provides accurate feedback for various applications. The control output is a Line Driver, supported by a power supply 5VDC, ensuring stable operation. The connection type is an Axial cable type, adding reliability to the design. Weighing Approx. 35g, this compact encoder is built for efficient integration. It operates in an ambient temperature range of -10 to 70β, storage: -20 to 80β and, with an ambient humidity range of 35 to 85% RH, storage: 35 to 90% RH. Take the First Step with a Quote for your requirement of 20 mm Incremental Rotary Encoder. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
