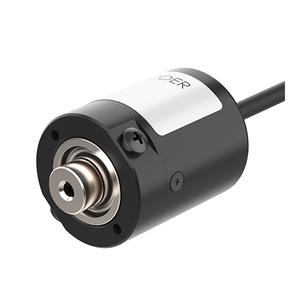

Autonics E20HB2-100-3-N-12-R Rotary Encoder
The Autonics E20HB2-100-3-N-12-R Rotary Encoder offers Γ2mm shaft inner diameter, 6000rpm Max. allowable revolution, NPN open collector, Control output 12VDC, Power supply, 100P/R, resolution Axial cable type connection type. Manufactured by Autonics under the Autonics Rotary Encoder category, this model belongs to the Autonics E20HB Series.
| Brand | Autonics |
| Product Type | Rotary Encoder |
| Model Number | E20HB2-100-3-N-12-R |
Autonics E20HB2-100-3-N-12-R Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Shaft inner diameter | Γ2mm |
| Max. response frequency | 100kHz |
| Max. allowable revolution | 6000rpm |
| Starting torque | Max. 5gf.cm(max. 0.00049N.m) |
| Resolution | 100P/R |
| Output phase | A, B, Z |
| Control output | NPN open collector |
| Power supply | 12VDC |
| Connection type | Axial cable type |
| Protection structure | IP50 |
| Environment_Ambient temperature | -10 to 70β, storage: -20 to 80β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | Bracket |
| Weight | Approx. 35g |
Give Us a Call for 20mm Incremental Rotary Encoder E20HB2-100-3-N-12-R at the lowest pricing. In-depth Technical Analysis of E20HB2-100-3-N-12-R feature shaft inner diameter of Γ2mm, designed for precise and smooth rotational measurement. It operates at a maximum allowable revolution of 6000rpm, ensuring high-speed performance. With a resolution of 100P/R, it provides accurate feedback for various applications. The control output is a NPN open collector, supported by a power supply 12VDC, ensuring stable operation. The connection type is an Axial cable type, adding reliability to the design. Weighing Approx. 35g, this compact encoder is built for efficient integration. It operates in an ambient temperature range of -10 to 70β, storage: -20 to 80β and, with an ambient humidity range of 35 to 85% RH, storage: 35 to 90% RH. Elevate Your Project with a Quote for your requirement of 20mm Incremental Rotary Encoder. Our promise More affordable pricing and more personalized support than other Distributors & Dealers.
