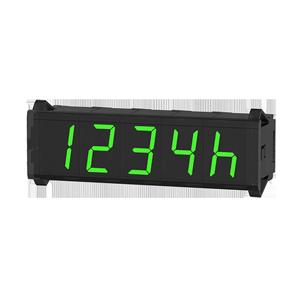

Autonics DS22-GC Digital Display Unit
The Autonics DS22-GC Digital Display Unit offers 7-segment LED display method, Green display color, W11.2ΓH22.5mm size, 12-24VDC power supply. Manufactured by Autonics under the Autonics Digital Display Unit category, this model belongs to theAutonics DS Series.
| Brand | Autonics |
| Product Type | Digital Display Units |
| Model Number | DS22-GC |
Autonics DS22-GC Digital Display Unit β Technical Specifications
| Specification | Value |
|---|---|
| Input method | RS485 communication input(synchronous time display type) |
| Display method | 7-segment LED |
| Display color | Green |
| Display characters | World local time 12/24hour(supports summer time) |
| Character size | W11.2ΓH22.5mm |
| Current consumption | Max. 20mA |
| Max. Connections | 10 EA |
| Power supply | 12-24VDC |
| Input resistance | 20kΞ© |
| Input level | High: 4.5-24VDC, low: 0-1.2VDC |
| Protection structure | IP40(front panel) |
| Accessories_Basic unit | Right/Left cap: 1, Connector: 1 |
| Environment_Ambient temperature | -10 to 55β, storage: -25 to 65β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 58g(approx. 17g) |
IndMALL Automation Dealing offers Autonics Intelligent Type Digital Display Units DS22-GC at unbeatable prices. The Main Technical Parameters of DS22-GC are 7-segment LED display, it provides a clear Green color output for easy readability. The display supports World local time 12/24hour(supports summer time), making it versatile for various data presentations. With a character size of W11.2ΓH22.5mm, it ensures excellent visibility in control panels. Powered by 12-24VDC, the unit operates efficiently across a wide range of industrial settings. Designed for durability, it functions within an ambient temperature range of -10 to 55β, storage: -25 to 65β. The humidity tolerance is 35 to 85% RH, storage: 35 to 85% RH, ensuring reliability in different environments. With an ultra-lightweight design at Approx. 58g(approx. 17g) total including accessories, installation is quick and hassle-free. Take the First Step with a Quote for your requirement of Intelligent Type Digital Display Units. Choose us for unparalleled pricing and support over other Dealers & Distributors.
