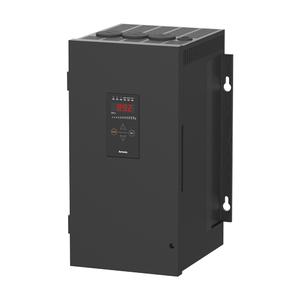

Autonics DPU34B-080D 80 A Power Controller
DPU34B-080D is an Autonics 80 A Power Controller for three-phase 440V systems with 80A rated current industrial automation use. Manufactured by Autonics, this controller belongs to Autonics Power Controllers within the DPU Series, supporting 0–98% phase control, 0–100% cycle ON/OFF control, ≤ 60 W power consumption, and a remote display unit option.
| Brand | Autonics |
| Product Type | Power Controller |
| Model Number | DPU34B-080D |
Autonics DPU34B-080D 80 A Power Controller – Technical Specifications
| Specification | Value |
|---|---|
| Control input | • Auto: 4-20mA / 0-20mA / 0-5VDC @(=) / 1-5VDC @(=) / 0-10VDC @(=) / voltage pulse (0/12VDC @(=)) / no-voltage input (ON/OFF) / Communication input (RS485)• Manual: inside 10kΩ VR, outside 3 to 10kΩ VR (min. 2W) |
| Control method | • Phase control: Normal control(Non-Feedback), static voltage/static current/static power control(Feedback)• Cycle control (Z.C.): Fixed cycle control, Variable cycle control• ON/OFF control (Z.C.) |
| Output range | Phase control: 0 to 98%, Cycle·ON/OFF control: 0 to 100% |
| Power supply | 440V |
| Power consumption | ≤ 60 W (control power) |
| Environment_Ambient temperature | -10 to 50 ℃, storage: -20 to 80 ℃ (no freezing or condensation) |
| Environment_Ambient humidity | 5 to 90 %RH, storage: 5 to 90 %RH (no freezing or condensation) |
| Indicator | R, S, T indicator (green)Operation / manual control indicator (green)DI, alarm / unit (V, A) indicator (red) |
| Number of phase | 3-phase |
| Load | • Phase control: resistance load, inductive load• ON/OFF, Cycle control: resistance load |
| Rated current capacity | 80A |
| Option | Remote Display Unit |
| Size | 80~200A |
| Unit weight (packaged weight) | ≈ 11.5 kg (≈ 13.0 kg) |
The Autonics DPU34B-080D 80 A Power Controller is designed for controlled power regulation in industrial automation systems. This Autonics controller operates on a three-phase 440V power supply with a rated current capacity of 80A and supports phase control and cycle ON/OFF control. DPU34B-080D is part of the DPU Series and is applied where stable electrical load control is required.
The DPU34B-080D Autonics 80 A Power Controller is used in conveyors, packaging machines, automated production lines, and industrial assembly systems. Its defined output range supports consistent power regulation for high-current loads. The remote display unit option allows operational visibility from control panels, supporting reliable monitoring and steady operation across demanding industrial environments.
DPU34B-080D from Autonics provides specified current handling and controlled electrical performance aligned with industrial standards. As a member of the DPU Series, it supports three-phase applications with defined output ranges and managed control power consumption. With clear specifications, panel integration capability, and consistent operating parameters, the DPU34B-080D Autonics 80 A Power Controller remains suitable for long-term industrial automation use.
