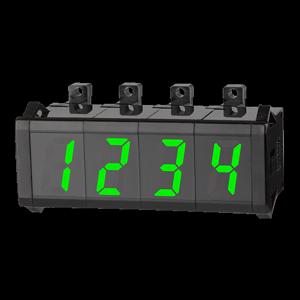

Autonics D1SA-GN Digital Display Unit
The Autonics D1SA-GN Digital Display Unit offers 7-segment LED display method, Green display color, W11ΓH22mm size, 12-24VDC power supply. Manufactured by Autonics under the Autonics Digital Display Unit category, this model belongs to theAutonics D1SA Series.
| Brand | Autonics |
| Product Type | Digital Display Unit |
| Model Number | D1SA-GN |
Autonics D1SA-GN Digital Display Unit β Technical Specifications
| Specification | Value |
|---|---|
| Input method | Serial input or Parallel(static/dynamic parallel) input |
| Input logic | Positive logic(PNP), Negative logic(NPN) |
| Display method | 7-segment LED |
| Display color | Green |
| Display characters | Decimal: 0 to 9, dotHexadecimal: 0 to 9, A to F, dot(set by switch) |
| Character size | W11ΓH22mm |
| Current consumption | Max. 35mA |
| Max. Connections | β |
| Power supply | 12-24VDC |
| Environment_Ambient temperature | 0 to 60β, storage: -10 to 85β |
| Environment_Ambient humidity | 35 to 85%RH |
| Accessories | Connector(CT-10S) |
| Weight | β 16g (β 131g) |
Give Us a Call for Autonics Small 7-Segment Digital Display Units D1SA-GN at the lowest pricing. In-depth Technical Analysis of D1SA-GN feature 7-segment LED display, it provides a clear Green color output for easy readability. The display supports Decimal: 0 to 9, dotHexadecimal: 0 to 9, A to F, dot(set by switch), making it versatile for various data presentations. With a character size of W11ΓH22mm, it ensures excellent visibility in control panels. Powered by 12-24VDC, the unit operates efficiently across a wide range of industrial settings. Designed for durability, it functions within an ambient temperature range of 0 to 60β, storage: -10 to 85β. The humidity tolerance is 35 to 85%RH, ensuring reliability in different environments. With an ultra-lightweight design at β 16g (β 131g) total including accessories, installation is quick and hassle-free. Elevate Your Project with a Quote for your requirement of Small 7-Segment Digital Display Units. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
