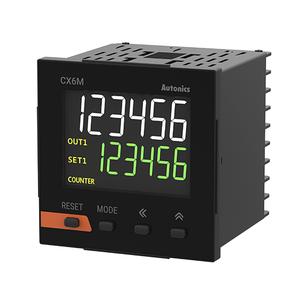

Autonics CX6M-2P4 Counter
The Autonics CX6M-2P4 Counter offers 1, 30, 300, 1k, 5k [cps] counting speed, 100-240VAC~ 50/60Hz power supply, Terminal block, 2-stage preset control output. Manufactured by Autonics under the Autonics Counters category, this model belongs to the Autonics CX6M Series.
| Brand | Autonics |
| Product Type | Counter |
| Model Number | CX6M-2P4 |
Autonics CX6M-2P4 Counter – Technical Specifications
| Specification | Value |
|---|---|
| Display method | Counting display part- 2-digit 7-segment LCD, 4-digit 11-segment LCDSetting value display part- 6-digit 7-segment LCD |
| Max. Counting Speed | 1, 30, 300, 1k, 5k [cps] |
| Counter_Counting range | -99999 to 999999 |
| Min. signal Width | 1ms/20ms |
| Power supply | 100-240VAC~ 50/60Hz |
| External Power Supply | Max. 12VDC @(=) ±10%, 100mA |
| Operation method | Counter: Count up, Count down, Count up/downTimer: Count up, Count down |
| Terminal | Terminal block |
| Output Operation | SIGNAL ON DELAY, POWER ON DELAY, ON-OFF DELAY |
| Time operation | POWER ON STARTSIGNAL ON START |
| Signal Input Method | Voltage input(PNP), No-voltage input(NPN) |
| Setting range | 0.001 sec to 999.999 sec, 0.01 sec to 9999.99 sec, 0.1 sec to 99999.9 sec, 1 sec to 999999 sec, 0.01 sec to 99 min 59.99 sec, 0.1 sec to 999 min 59.9 sec, 1 sec to 9999 min 59 sec, 0.1 min to 99999.9 min, 1 min to 999999 min, 1 sec to 99 hour 59 min 59 sec, 1 min to 9999 hour 59 min, 0.1 hour to 99999.9 hour |
| Control output_Type | 2-stage preset |
| Control output_Relay | SPDT (1c): 2 |
| Counter_Scale | Decimal point up to fifth digit |
| Control output_NPN open collector | 2 |
| Memory Protection | Approx. 10 years |
| Environment_Ambient temperature | -10 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP50(front panel) |
| Weight | Approx. 240g(approx. 175g) |
Send Your Inquiry for LCD Display Counter/Timer CX6M-2P4 with cost-effective solutions. Essential Technical Specs of CX6M-2P4 are counting the speed of 1, 30, 300, 1k, 5k [cps], ensuring accurate data processing. With a minimum signal width of 1ms/20ms for counting value signals, they provide dependable performance in high-speed operations. Operating on a 100-240VAC~ 50/60Hz power supply, the sensors feature memory protection with a non-volatile semiconductor memory type, offering a retention period of approximately Approx. 10 years. Built to withstand challenging environments, they operate efficiently in a wide ambient temperature range -10 to 55℃, storage: -25 to 65℃ and come with a robust protection structure IP50(front panel) to ensure durability. Compact and lightweight Approx. 240g(approx. 175g), these sensors are easy to install and integrate into existing systems. Capture the Best Deal with a Quote for your requirement of LCD Display Counter/Timer. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
