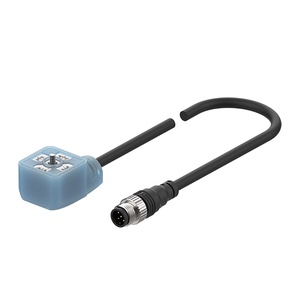

Autonics CVA-DPA-3050-I Cables
The Autonics CVA-DPA-3050-I Cables offers 24VDC power supply, Max. 2A current, Max. 60.12Ω/km (AWG22) conductor resistance, IP67 protection structure. Manufactured by Autonics under the Autonics Cables category, this model belongs to the Autonics CH Series.
| Brand | Autonics |
| Product Type | Cables |
| Model Number | CVA-DPA-3050-I |
Autonics CVA-DPA-3050-I Cables – Technical Specifications
| Specification | Value |
|---|---|
| Power supply | 24VDC |
| Rated current | Max. 2A |
| Conductor resistance | Max. 60.12Ω/km (AWG22) |
| Insulation resistance | ≥1,000MΩ (at 500VDC megger) |
| Cable tensile force | 10kgf(100N) |
| Mounting torque | 4.0~6.1kgf.cm(0.4~0.6N.m) |
| Dielectric strength | 2,000VAC~ 50/60Hz (for 1 min.) |
| Vibration | 1.0mm amplitude at frequency of 10 to 55Hzin each X, Y, Z direction for 1 hour |
| Shock | 500m/s²(approx. 50G) in each X, Y, Z direction for 3 times |
| Protection structure | IP67 |
| Environment_Ambient temperature | -25 to 70℃, storage: -30 to 80℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 73.1g (approx. 68g) |
