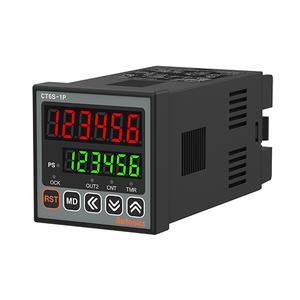

Autonics CT6S-1P4 Counter
The Autonics CT6S-1P4 Counter offers 1, 30, 1k, 5k, 10k [cps] counting speed, 100-240VAC~ 50/60Hz power supply, Terminal block, 1-stage preset control output. Manufactured by Autonics under the Autonics Counters category, this model belongs to the Autonics CT6S Series.
| Brand | Autonics |
| Product Type | Counter |
| Model Number | CT6S-1P4 |
Autonics CT6S-1P4 Counter โ Technical Specifications
| Specification | Value |
|---|---|
| Display method | 6-digit 7-segment LED |
| Max. Counting Speed | 1, 30, 1k, 5k, 10k [cps] |
| Counter_Counting range | -99999 to 999999 |
| Min. signal Width | 1ms/20ms |
| Power supply | 100-240VAC~ 50/60Hz |
| External Power Supply | Max. 12VDC @(=) ยฑ10%, 100mA |
| Operation method | Counter: Count up, Count down, Count up/downTimer: Count up, Count down |
| Terminal | Terminal block |
| Output Operation | SIGNAL ON DELAY, POWER ON DELAY, FLICKER, INTERVAL, SIGNAL OFF DELAY, ON-OFF DELAY, INTEGRATION TIME |
| Time operation | POWER ON STARTSIGNAL ON START |
| Signal Input Method | Voltage input(PNP), No-voltage input(NPN) |
| Setting range | 0.001 sec to 9.999 sec, 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 9999 min, 1 min to 99 hour 59 min, 1 hour to 9999 hour |
| Control output_Type | 1-stage preset |
| Control output_Relay | SPDT (1c): 1 |
| Counter_Scale | Decimal point up to fifth digit |
| Control output_NPN open collector | 1 |
| Counter_Min. input signal width | RESET: Selectable 1ms/20ms |
| Timer_Min. input signal width | INA, INH, RESET: Selectable 1ms/20ms |
| Memory Protection | Approx. 10 years |
| Environment_Ambient temperature | -10 to 55โ, storage: -25 to 65โ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP65(front panel) |
| Weight | Approx. 212g (approx. 159g) |
The Autonics Counter CT6S-1P4 is built as a Programmable Digital Counter/Timer device with a bright 6-digit LED display and selectable counting speeds from 1 cps up to 10k cps. Its wide range of timing functions, from milliseconds to thousands of hours, ensures flexibility for batch processes and sequence control. Operating on 100โ240VAC with a 12VDC sensor output, this CT6S automation counter integrates easily into panels with terminal block wiring. Memory protection up to 10 years and IP65-rated protection strengthen its reliability in harsh plant conditions.
Engineers value the CT6S-1P4 Autonics model for its dual operation methods โ counter and timer โ supported by delay functions such as power-on, signal-on, signal-off, and flicker control. It includes SPDT relay and NPN open collector outputs, making it adaptable for PLC integration and process monitoring. Lightweight at just over 200g, this Autonics counter timer simplifies installation in compact enclosures while ensuring long-term accuracy in both fast production lines and slow cycle operations.
The CT6S series counters from Autonics are widely recognized for stability, durability, and ease of use. The Autonics CT6S-1P4 counter is applied in conveyor automation, labeling systems, and OEM machinery where signal precision is critical to efficiency. Whether engineers search for CT6S 1P4 programmable units, Autonics CT6S-1P4 datasheet, or CT6S Autonics counter solutions, this model consistently proves its value as a dependable choice. For full specifications and support, refer to the official Autonics Counters resource page.
