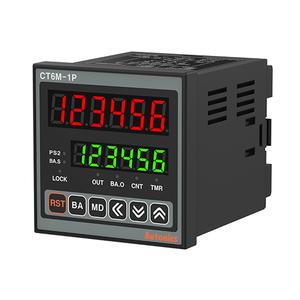

Autonics CT6M-1P4T Counter
The Autonics CT6M-1P4T Counter offers 1, 30, 1k, 5k, 10k [cps] counting speed, 100-240VAC~ 50/60Hz power supply, Terminal block, 1-stage preset control output. Manufactured by Autonics under the Autonics Counters category, this model belongs to the Autonics CT6M Series.
| Brand | Autonics |
| Product Type | Counter |
| Model Number | CT6M-1P4T |
Autonics CT6M-1P4T Counter β Technical Specifications
| Specification | Value |
|---|---|
| Display method | 6-digit 7-segment LED |
| Max. Counting Speed | 1, 30, 1k, 5k, 10k [cps] |
| Counter_Counting range | -99999 to 999999 |
| Min. signal Width | 1ms/20ms |
| Power supply | 100-240VAC~ 50/60Hz |
| External Power Supply | Max. 12VDC @(=) Β±10%, 100mA |
| Operation method | Counter: Count up, Count down, Count up/downTimer: Count up, Count down |
| Terminal | Terminal block |
| Output Operation | SIGNAL ON DELAY, POWER ON DELAY, FLICKER, INTERVAL, SIGNAL OFF DELAY, ON-OFF DELAY, INTEGRATION TIME |
| Time operation | POWER ON STARTSIGNAL ON START |
| Signal Input Method | Voltage input(PNP), No-voltage input(NPN) |
| Setting range | 0.001 sec to 9.999 sec, 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 9999 min, 1 min to 99 hour 59 min, 1 hour to 9999 hour |
| Control output_Type | 1-stage preset |
| Control output_Relay | SPDT (1c): 1 |
| Counter_Scale | Decimal point up to fifth digit |
| Control output_NPN open collector | 2 |
| Counter_Min. input signal width | RESET: Selectable 1ms/20ms |
| Timer_Min. input signal width | INA, RESET, INHIBIT, BATCH, RESET: Selectable 1ms/20ms |
| Communication output | RS485 |
| Memory Protection | Approx. 10 years |
| Environment_Ambient temperature | -10 to 55β, storage: -25 to 65β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP65(front panel) |
| Weight | Approx. 322g (approx. 252g) |
The Autonics CT6M-1P4T Counter features a bright 6-digit 7-segment LED display for clear visibility in industrial environments. It supports maximum counting speeds of 10k cps with selectable speeds of 1, 30, 1k, and 5k cps, making it ideal for both high-speed and standard process control.
The counting range extends from -99999 to 999999, and the timer can be set from 0.001 seconds to 9999 hours. Multiple operation modesβcount up, count down, and up/downβoffer flexibility, while control outputs include an SPDT relay and dual NPN open collector outputs. It operates on a universal 100β240VAC~ 50/60Hz supply and supports RS485 communication for integration with advanced systems. Non-volatile memory ensures approximately 10 years of data retention.
With an IP65-rated front panel, the CT6M-1P4T withstands dust and water exposure, while its 322g build and terminal block connections simplify installation. Learn more on our Autonics brand page or visit the CT6M-1P4T product page for complete specifications.
The Autonics CT6M-1P4T Programmable Digital Counter/Timer is widely used in manufacturing lines, packaging machines, batch processing systems, and automated test setups. It enables precise cycle counting, interval timing, and sequence control, helping engineers maintain consistent output quality. Maintenance teams appreciate its easy configuration, RS485 connectivity, and long-term stability, while engineering students value it as a practical tool for learning industrial control principles. Whether in OEM machine builds or retrofit projects, the CT6M-1P4T delivers accuracy, reliability, and flexibility for modern automation needs.
