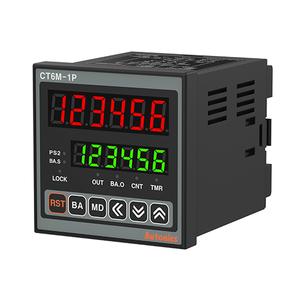

Autonics CT6M-1P2 Counter
The Autonics CT6M-1P2 Counter offers 1, 30, 1k, 5k, 10k [cps] counting speed, 24VAC~ 50/60Hz, 24-48VDC power supply, Terminal block, 1-stage preset control output. Manufactured by Autonics under the Autonics Counters category, this model belongs to the Autonics CT6M Series.
| Brand | Autonics |
| Product Type | Counter |
| Model Number | CT6M-1P2 |
Autonics CT6M-1P2 Counter – Technical Specifications
| Specification | Value |
|---|---|
| Display method | 6-digit 7-segment LED |
| Max. Counting Speed | 1, 30, 1k, 5k, 10k [cps] |
| Counter_Counting range | -99999 to 999999 |
| Min. signal Width | 1ms/20ms |
| Power supply | 24VAC~ 50/60Hz, 24-48VDC |
| External Power Supply | Max. 12VDC @(=) ±10%, 100mA |
| Operation method | Counter: Count up, Count down, Count up/downTimer: Count up, Count down |
| Terminal | Terminal block |
| Output Operation | SIGNAL ON DELAY, POWER ON DELAY, FLICKER, INTERVAL, SIGNAL OFF DELAY, ON-OFF DELAY, INTEGRATION TIME |
| Time operation | POWER ON STARTSIGNAL ON START |
| Signal Input Method | Voltage input(PNP), No-voltage input(NPN) |
| Setting range | 0.001 sec to 9.999 sec, 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 9999 min, 1 min to 99 hour 59 min, 1 hour to 9999 hour |
| Control output_Type | 1-stage preset |
| Control output_Relay | SPDT (1c): 1 |
| Counter_Scale | Decimal point up to fifth digit |
| Control output_NPN open collector | 2 |
| Counter_Min. input signal width | RESET: Selectable 1ms/20ms |
| Timer_Min. input signal width | INA, RESET, INHIBIT, BATCH, RESET: Selectable 1ms/20ms |
| Memory Protection | Approx. 10 years |
| Environment_Ambient temperature | -10 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP65(front panel) |
| Weight | Approx. 322g (approx. 252g) |
The Autonics CT6M-1P2 is a compact and feature-rich Programmable Digital Counter/Timer designed for high-speed industrial automation processes. It supports fast counting speeds up to 10k cps and features a clear 6-digit 7-segment LED display for easy monitoring. Operating on both 24VAC~ and 24–48VDC power, this unit provides dependable voltage flexibility for various control panels.
With selectable input types (PNP/NPN) and minimum signal width options (1ms or 20ms), the CT6M-1P2 adapts easily to diverse sensors and machine signals. This model includes a 1-stage preset output, SPDT relay, and dual NPN open collector outputs to manage control logic effectively. Its non-volatile memory ensures configuration retention for up to 10 years, and the IP65-rated front panel makes it resilient against dust and moisture.
Engineers choose Autonics counters for their stability, fast integration, and precision. The CT6M-1P2 continues this legacy, providing top-tier timing and counting functionality for equipment builders and maintenance teams. Learn more on the Autonics Counters section or visit the complete Autonics Brand Page.
This Programmable Digital Counter/Timer offers flexible operating modes such as count up, count down, and up/down logic—making it highly adaptable to both new installations and legacy machine upgrades. With built-in functions like flicker, signal-on delay, and power-on start, the CT6M-1P2 supports precise sequencing in synchronized systems. Its terminal block wiring and simple menu settings make it easy for plant technicians and engineers to install and configure without needing complex training.
Backed by the engineering trust of Autonics, the CT6M-1P2 helps factories reduce manual errors, improve cycle efficiency, and scale their automation with reliable counter logic. Whether you're modernizing a plant or setting up a new production line, this counter offers long-term value in industrial control systems.
