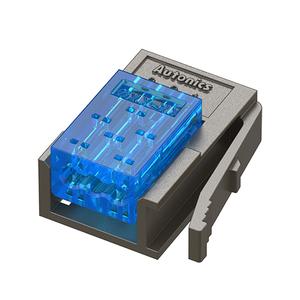

Autonics CNE-P03-BL Connector
The Autonics CNE-P03-BL Connectors offers 3-pin, ≤32VAC~/VDC power supply, Max. 3.0A current, Min. 1.4kgf terminal retention. Manufactured by Autonics under the Autonics Connectors category, this model belongs to the Autonics CNE Series.
| Brand | Autonics |
| Product Type | Connectors |
| Model Number | CNE-P03-BL |
Autonics CNE-P03-BL Connector – Technical Specifications
| Specification | Value |
|---|---|
| Number of pins | 3-pin |
| Power supply | ≤32VAC~/VDC |
| Rated current | Max. 3.0A |
| Terminal retention | Min. 1.4kgf |
| AWG | AWG20-22 |
| Nominal cross Section Area | 0.32~0.5mm² |
| Cover diameter | Ø1.2 to 1.6mm |
| Cover color | Blue |
| Extraction | Min. 0.49N (50gf)/pin |
| Insertion | Max. 1.96N (200gf)/pin |
| Material | Body: PC/ABS (UL94V-0), Terminal: C5210 (gold 0.2μm), Case: PC (UL94-V0) |
