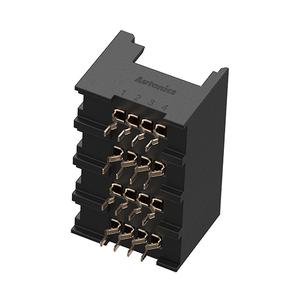

Autonics CNE-B404 Connector
The Autonics CNE-B404 Connectors offers 4-pin, โค32VAC~/VDC power supply, Max. 3.0A current, Min. 1.4kgf terminal retention. Manufactured by Autonics under the Autonics Connectors category, this model belongs to the Autonics CNE Series.
| Brand | Autonics |
| Product Type | Connectors |
| Model Number | CNE-B404 |
Autonics CNE-B404 Connector โ Technical Specifications
| Specification | Value |
|---|---|
| Number of pins | 4-pin |
| Power supply | โค32VAC~/VDC |
| Rated current | Max. 3.0A |
| Terminal retention | Min. 1.4kgf |
| Extraction | Min. 0.49N (50gf)/pin |
| Insertion | Max. 1.96N (200gf)/pin |
| Material | Body: PC/ABS (UL94-V0), Terminal: C5210 (gold 0.2ฮผm) |
| Lines | 4 |
| PCB | Fender plated-through hole, Hole diameter: 1.0mm, PCB thickness: 1.0 to 2.2mm |
