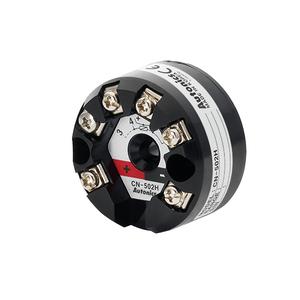

Autonics CN-502H Temperature Transmitter
The Autonics CN-502H Temperature Transmitter offers 11-35VDC power supply, HART-protocol (no setting key) type, 1 sec response time, DC4-20mA (2-wire) output , Max. (power supply - 11VDC)/0.023A load. Manufactured by Autonics under the Autonics Temperature Transmitter category, this model belongs to the Autonics KT Series.
| Brand | Autonics |
| Product Type | Temperature Transmitter |
| Model Number | CN-502H |
Autonics CN-502H Temperature Transmitter β Technical Specifications
| Specification | Value |
|---|---|
| Power supply | 11-35VDC |
| Display method | Non-display |
| Setting type | HART-protocol (no setting key) |
| Response time | 1 sec |
| Input type_RTD | DPt100Ξ©, DPt500Ξ©, DPt1000Ξ©, Ni100Ξ©, Ni500Ξ©, Ni1000Ξ©, JPt100Ξ© |
| Input type_TC | K, J, T, E, N, S, B, R |
| Input type_Resistance transmission | 0-400Ξ©, 0-2000Ξ© |
| Input type_Voltage transmission | -10-75mV, -100-100mV, -100-500mV, -100-2000mV |
| Output | DC4-20mA (2-wire) |
| Load | Max. (power supply - 11VDC)/0.023A |
| Galvanic insulation | 1kVAC (input/output) |
| Environment_Ambient temperature | -40 to 85β, storage: -40 to 85β |
| Environment_Ambient humidity | 5 to 95% RH, storage: 5 to 95% RH |
| Material | Case: Polycarbonate |
| Weight | Approx. 66g (approx. 26g) |
IndMALL Automation Dealing offers Cylindrical Temperature Transmitters CN-502H at unbeatable prices. The Main Technical Parameters of CN-502H are power supply of 11-35VDC, these sensors utilize HART-protocol (no setting key) ensuring seamless integration. With a quick response time of 1 sec, they deliver outputs via DC4-20mA (2-wire) and support an Max. (power supply - 11VDC)/0.023A. The sensors feature robust galvanic insulation rated at 1kVAC (input/output) for enhanced safety. Designed to operate in challenging environments, they perform reliably within ambient temperatures of -40 to 85β, storage: -40 to 85β and humidity levels of 5 to 95% RH, storage: 5 to 95% RH. Built with a durable Case: Polycarbonate, these sensors provide excellent protection and longevity. Take the First Step with a Quote for your requirement of Cylindrical Temperature Transmitters. Choose us for unparalleled pricing and support over other Dealers & Distributors.
