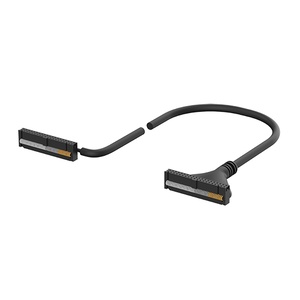

Autonics CH40-HP030-F5T2L Cables
The Autonics CH40-HP030-F5T2L Cables offers 40-pin connector pins, UL 20276 TWIST 40C applicable cable, β€1A current, 500VAC~ 50/60Hz for 1 min. voltage. Manufactured by Autonics under the Autonics Cables category, this model belongs to the Autonics C4DH4 Series.
| Brand | Autonics |
| Product Type | Cables |
| Model Number | CH40-HP030-F5T2L |
Autonics CH40-HP030-F5T2L Cables β Technical Specifications
| Specification | Value |
|---|---|
| Number of connector pins | 40-pin |
| Connector for PLC | Hirose 40pin socket |
| Connector for terminal block | Hirose 40pin socket |
| Applicable cable | UL 20276 TWIST 40C |
| Conductor characteristics | 7/0.127mm(AWG 28)Γ20P |
| Insulation diameter | 0.12mmΒ² |
| Cable diameter | Γ7.2mm(40C) |
| Rated current | β€1A |
| Conductor resistance | β€0.223Ξ©/m |
| Insulation voltage | 500VAC~ 50/60Hz for 1 min. |
| Insulation resistance | β₯15Mβ¦/km |
| Environment_Ambient temperature | -15 to 55β, storage: -25 to 65β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 243g |
