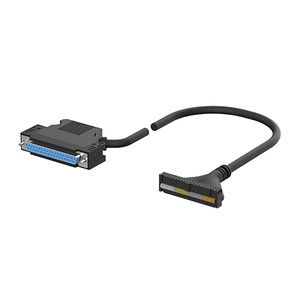

Autonics CH37-DP040-B6T1R Cables
The Autonics CH37-DP040-B6T1R Cables offers 37-pin connector pins, UL 20276 TWIST 40C applicable cable, ≤1A current, 500VAC~ 50/60Hz for 1 min. voltage. Manufactured by Autonics under the Autonics Cables category, this model belongs to the Autonics CH Series.
| Brand | Autonics |
| Product Type | Cables |
| Model Number | CH37-DP040-B6T1R |
Autonics CH37-DP040-B6T1R Cables – Technical Specifications
| Specification | Value |
|---|---|
| Number of connector pins | 37-pin |
| Connector for PLC | D-sub 37pin socket |
| Connector for terminal block | Hirose 40pin socket |
| Applicable cable | UL 20276 TWIST 40C |
| Conductor characteristics | 7/0.127mm(AWG 28)×20P |
| Insulation diameter | 0.12mm² |
| Cable diameter | Ø7.2mm(40C) |
| Rated current | ≤1A |
| Conductor resistance | ≤0.223Ω/m |
| Insulation voltage | 500VAC~ 50/60Hz for 1 min. |
| Insulation resistance | ≥15MΩ/km |
| Environment_Ambient temperature | -15 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 349g |
