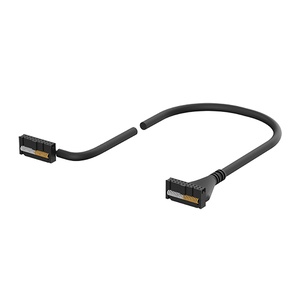

Autonics CH20-HP005-C1T1R Cables
The Autonics CH20-HP005-C1T1R Cables offers 20-pin connector pins, UL 20276 TWIST 20C applicable cable, ≤1A current, 500VAC~ 50/60Hz for 1 min. voltage. Manufactured by Autonics under the Autonics Cables category, this model belongs to the Autonics CH Series.
| Brand | Autonics |
| Product Type | Cables |
| Model Number | CH20-HP005-C1T1R |
Autonics CH20-HP005-C1T1R Cables – Technical Specifications
| Specification | Value |
|---|---|
| Number of connector pins | 20-pin |
| Connector for PLC | Hirose 20pin socket |
| Connector for terminal block | Hirose 20pin socket |
| Applicable cable | UL 20276 TWIST 20C |
| Conductor characteristics | 7/0.127mm(AWG 28)×10P |
| Insulation diameter | 0.12mm² |
| Cable diameter | Ø6.3mm(26C) |
| Rated current | ≤1A |
| Conductor resistance | ≤0.223Ω/m |
| Insulation voltage | 500VAC~ 50/60Hz for 1 min. |
| Insulation resistance | ≥15MΩ/km |
| Environment_Ambient temperature | -15 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 37g |
