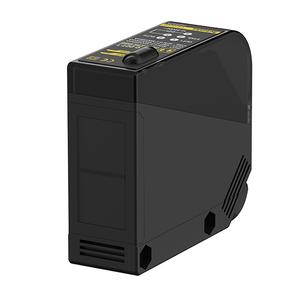

Autonics BX700-DDT-T Photoelectric Sensor
The Autonics BX700-DDT-T Photoelectric Sensor offers Diffuse reflective type sensing type, 700mm, Infrared LED(940nm), NPN, PNP open collector simultaneous output output, 12-24VDC power supply. Manufactured by Autonics under the Autonics Photoelectric Sensors category, this model belongs to the Autonics BX Series.
| Brand | Autonics |
| Product Type | Photoelectric Sensor |
| Model Number | BX700-DDT-T |
Autonics BX700-DDT-T Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing type | Diffuse reflective type |
| Sensing distance | 700mm |
| Sensing target | Opaque, Translucent material |
| Response time | Max. 1ms |
| Light source | Infrared LED(940nm) |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by switch) |
| Power supply | 12-24VDC |
| Current consumption | Max. 50mA |
| Control output | NPN, PNP open collector simultaneous output |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -20 to 55β, storage: -25 to 70β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP65 |
| Connection type | Terminal block type |
| Material | Case, Lens cover: Polycarbonate, Sensing part: Acrylic, Bracket: Steel plate cold commercial,Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum |
| Timer function | Timer Function |
| Accessories_Common | Adjuster driver, Fixing bracket, Bolts, Nuts |
| Hysteresis(distance) | Max. 20% at sensing distance |
| Weight | Approx. 117g |
Please speak to our Technical Engineer for Universal AC/DC Photoelectric Sensors BX700-DDT-T at attractive prices. Technical Specs Summary of BX700-DDT-T includes the sensor features a diffuse Diffuse reflective type with a reliable sensing distance of 700mm, ensuring precise object detection. Powered by an Infrared LED(940nm), it operates in Light ON/Dark ON(set by switch) mode, providing optimal efficiency in diverse environments. The response time is an impressive Max. 1ms, enabling quick and accurate detection. This sensor operates on a 12-24VDC power supply and consumes a maximum current of Max. 50mA. It includes an NPN, PNP open collector simultaneous output control output for versatile operation. Designed with durability in mind, the protection structure is rated at IP65, making it suitable for challenging conditions. The connection type features a robust Terminal block type for easy installation. Match Your Needs with a Quote for your requirement of Universal AC/DC Photoelectric Sensors. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
