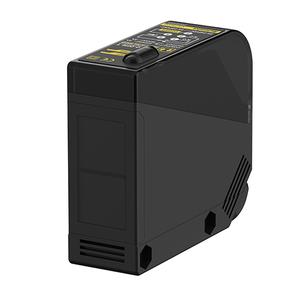

Autonics BX3M-PDT-T Photoelectric Sensor
The Autonics BX3M-PDT-T Photoelectric Sensor offers Retroreflective type(built-in polarizing filter) sensing type, 3m, Red LED(660nm), NPN, PNP open collector simultaneous output output, 12-24VDC power supply. Manufactured by Autonics under the Autonics Photoelectric Sensors category, this model belongs to the Autonics BX Series.
| Brand | Autonics |
| Product Type | Photoelectric Sensor |
| Model Number | BX3M-PDT-T |
Autonics BX3M-PDT-T Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing type | Retroreflective type(built-in polarizing filter) |
| Sensing distance | 3m |
| Sensing target | Opaque material of min. Γ60mm |
| Response time | Max. 1ms |
| Light source | Red LED(660nm) |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by switch) |
| Power supply | 12-24VDC |
| Current consumption | Max. 50mA |
| Control output | NPN, PNP open collector simultaneous output |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -20 to 55β, storage: -25 to 70β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP65 |
| Connection type | Terminal block type |
| Material | Case, Lens cover: Polycarbonate, Sensing part: Acrylic, Bracket: Steel plate cold commercial,Bolt: Steel chromium molybdenum, Nut: Steel chromium molybdenum |
| Timer function | Timer Function |
| Accessories_Common | Adjuster driver, Fixing bracket, Bolts, Nuts |
| Accessories_Individual | Reflector(MS-3) |
| Weight | Approx. 142g |
IndMALL Automation Dealing offers Universal AC/DC Photoelectric Sensors BX3M-PDT-T at unbeatable prices. The Main Technical Parameters of BX3M-PDT-T are the sensor features a diffuse Retroreflective type(built-in polarizing filter) with a reliable sensing distance of 3m, ensuring precise object detection. Powered by an Red LED(660nm), it operates in Light ON/Dark ON(set by switch) mode, providing optimal efficiency in diverse environments. The response time is an impressive Max. 1ms, enabling quick and accurate detection. This sensor operates on a 12-24VDC power supply and consumes a maximum current of Max. 50mA. It includes an NPN, PNP open collector simultaneous output control output for versatile operation. Designed with durability in mind, the protection structure is rated at IP65, making it suitable for challenging conditions. The connection type features a robust Terminal block type for easy installation. Take the First Step with a Quote for your requirement of Universal AC/DC Photoelectric Sensors. Choose us for unparalleled pricing and support over other Dealers & Distributors.
