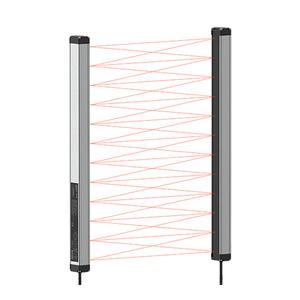

Autonics BWC40-20H Area Sensor
The Autonics BWC40-20H Area Sensor offers Through-beam type(cross beam) sensing, 1 to 7m sensing distance, Infrared LED(850nm modulated) light source, 12-24VDC power supply , NPN open collector output. Manufactured by Autonics under the Autonics Area Sensor category, this model belongs to the Autonics BWC Series.
| Brand | Autonics |
| Product Type | Area Sensor |
| Model Number | BWC40-20H |
Autonics BWC40-20H Area Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing type | Through-beam type(cross beam) |
| Sensing distance | 1 to 7m |
| Light source | Infrared LED(850nm modulated) |
| Optical axis pitch | 40mm |
| Number of optical axes | 20 |
| Sensing height | 760mm |
| Power supply | 12-24VDC |
| Control output | NPN open collector |
| Operation mode | Light ON |
| Environment_Ambient illumination | Ambient light: Max. 100,000lx(receiver illumination) |
| Environment_Ambient temperature | -10 to 55β, storage: -20 to 60β |
| Connection type | Cable connector type(Γ5, 300mm, M12) |
| Protection structure | IP67(IEC standard) |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Min. sensing target | Opaque material of min. Γ50mm |
| Response time | Max. 50ms |
| Material | Case: Aluminum, Sensing part and indicator: Acrylic |
| Cable specification | Γ5mm, 4-wire, 300mm, M12 connector |
| Accessories | Bracket A: 4, Bracket B: 4, Fixing bolt: 8 |
| Weight | Approx. 2.1kg(approx. 1.7kg)(based on BWC80-14H) |
IndMALL Automation Dealing offers Cross-Beam Area Sensors BWC40-20H at unbeatable prices. The Main Technical Parameters of BWC40-20H are Through-beam type(cross beam) sensor provides a sensing distance of 1 to 7m, utilizing a Infrared LED(850nm modulated) light source with an 40mm optical axis pitch for precise detection. Operating efficiently with a power supply range of 12-24VDC, it features a NPN open collector control output and supports Light ON operation mode. The connection is streamlined with a Cable connector type(Γ5, 300mm, M12), ensuring durability and easy integration. With a rapid response time of Max. 50ms, the sensor operates reliably in ambient temperatures from -10 to 55β, storage: -20 to 60β. Take the First Step with a Quote for your requirement of Cross-Beam Area Sensors. Choose us for unparalleled pricing and support over other Dealers & Distributors.
