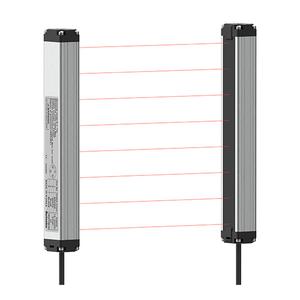

Autonics BW40-04 Area Sensor
The Autonics BW40-04 Area Sensor offers Through-beam type(direct beam) sensing, 0.1 to 7m sensing distance, Infrared LED(850nm modulated) light source, 12-24VDC power supply , NPN open collector output. Manufactured by Autonics under the Autonics Area Sensor category, this model belongs to the Autonics BW Series.
| Brand | Autonics |
| Product Type | Area Sensor |
| Model Number | BW40-04 |
Autonics BW40-04 Area Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing type | Through-beam type(direct beam) |
| Sensing distance | 0.1 to 7m |
| Light source | Infrared LED(850nm modulated) |
| Optical axis pitch | 40mm |
| Number of optical axes | 4 |
| Power supply | 12-24VDC |
| Control output | NPN open collector |
| Operation mode | Light ON |
| Environment_Ambient illumination | Ambient light: Max. 10,000lx(receiver illumination) |
| Environment_Ambient temperature | -10 to 55β, storage: -20 to 60β |
| Connection type | Cable connector type(Γ5, 300mm, M12) |
| Protection structure | IP65 |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Min. sensing target | Opaque material of min. Γ50mm |
| Response time | Max. 10ms |
| Material | β’ Case: Aluminum, β’ Front cover, sensing part: Acrylic |
| Cable specification | Γ5mm, 4-wire, 300mm, M12 connector |
| Sensing height/Total length | 120/160mm |
| Accessories | Bracket A: 4, Bracket B: 4, Fixing bolt: 8 |
| Weight | BW40-24: Approx. 2.1kg(approx. 1.4kg) |
The Autonics BW40-04 operates using a General Purpose Area Sensors and provides reliable detection over a 0.1 to 7-meter range. It emits infrared LED light at 850nm, modulated to improve accuracy and minimize interference. With just 4 optical axes spaced at a 40mm pitch, this model is suited for narrow sensing areas where precise control is needed. Its 12β24VDC power input (Β±10% tolerance) and NPN open collector output in Light ON mode make it compatible with most PLCs and logic controllers. The sensor body is constructed with a rugged aluminum case and sealed to an IP65 protection level, making it suitable for dusty or wet environments. It offers a sensing height of 120mm and supports minimum detectable object sizes of Γ50mm, with a fast 10ms response time that supports dynamic automation tasks. Its M12 connector type and 300mm pre-wired cable simplify installation. It operates reliably from -10Β°C to 55Β°C and resists ambient light up to 10,000 lux, making the BW40-04 a preferred solution in tightly constrained or high-speed systems. View more Autonics sensor solutions.
Itβs especially effective in pharmaceutical packaging units, food-grade conveyor belts, and micro-assembly lines, where engineers require fast and stable detection of standard-sized or boxed objects. Thanks to its rapid response and noise-resistant design, it performs well even in electrically noisy or variable lighting conditions. With consistent output and minimal maintenance requirements, the BW40-04 ensures smooth operation in precision-based automation environments.The Autonics BW40 Series offers a scalable range of General Purpose Area Sensors, including BW40-08, BW40-12P, BW40-16, and BW40-24. These models vary in sensing height and number of optical axes, catering to everything from compact to large-area detection needs. Whether your focus is entry detection, conveyor control, or safety light gridding, this series delivers consistent performance with strong environmental protection and industry-standard wiring.
