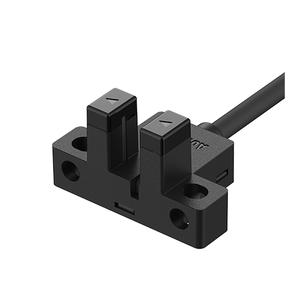

Autonics BS5-L1R Photomicro Sensor
The Autonics BS5-L1R Photomicro Sensor offers Through-beam type, 5mm sensing distance, Infrared LED(940nm) light source, 5-24VDC power supply, NPN open collector output control output. Manufactured by Autonics under the Autonics Photomicro Sensor category, this model belongs to the Autonics BS5 Series.
| Brand | Autonics |
| Product Type | Photomicro Sensor |
| Model Number | BS5-L1R |
Autonics BS5-L1R Photomicro Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Sensing type | Through-beam type |
| Sensing distance | 5mm |
| Sensing target | Opaque |
| Min. sensing target | ≥Ø0.8mm×2mm |
| Hysteresis(distance) | ≤0.05mm |
| Response time | Light ON: Max. 20㎲, Dark ON: Max. 100㎲ |
| Response frequency | 2kHz |
| Light source | Infrared LED(940nm) |
| Operation mode | Light ON/Dark ON(set by control wire) |
| Indicator | Operation indicator (red LED) |
| Power supply | 5-24VDC |
| Current consumption | Max. 30mA |
| Control output | NPN open collector output |
| Load voltage | ≤30VDC@(=) |
| Load current | Max. 100mA |
| Residual voltage | NPN: ≤1.2VDC@(=), PNP: ≤ 1.2VDC@(=) |
| Protection circuit | Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit |
| Insulation resistance | ≥20 MΩ (250 VDC@(=) megger) |
| Noise immunity | The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC@(=) |
| Dielectric strength | Between the charging part and the case: 1,000 VAC~ 50/60 Hz for 1 minute |
| Vibration | 1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours |
| Shock | 15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times |
| Environment_Ambient illumination | Fluorescent lamp: Max. 1,000lx(received illumination) |
| Environment_Ambient temperature | -20 to 55℃, storage : -25 to 85℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP50 (IEC standard) |
| Connection | Cable type |
| Material | Case: PBT, Sensing part: PC |
| Weight_Body | Approx. 50g |
Talk to Our Engineer for Groove-Depth 9 mm Photomicro Sensors BS5-L1R with exclusive offers. Core System Specifications of BS5-L1R are Through-beam type sensing type with a sensing distance of 5mm, ideal for detecting Opaque targets. The minimum sensing target is ≥Ø0.8mm×2mm, with hysteresis limited to ≤0.05mm for high accuracy. Featuring a rapid response time of Light ON: Max. 20㎲, Dark ON: Max. 100㎲, the sensors achieve a response frequency of 2kHz, making them suitable for fast-paced operations. Powered by a Infrared LED(940nm) light source, they operate in Light ON/Dark ON(set by control wire) modes selectable via a control wire. With a power supply range of 5-24VDC and current consumption of Max. 30mA, they ensure energy-efficient performance. The NPN open collector output control output provides seamless integration. Designed for durability, they function in temperatures from -20 to 55℃, storage : -25 to 85℃, with IP50 (IEC standard) rated protection. Don't Miss Out on a Quote for your requirement of Groove-Depth 9 mm Photomicro Sensors. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
