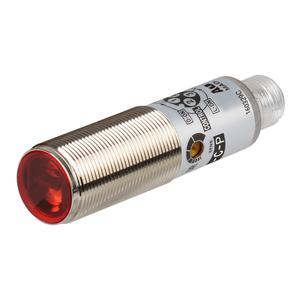

Autonics BRQT100-DDTA-C Photoelectric Sensor
The Autonics BRQT100-DDTA-C Photoelectric Sensor offers Diffuse reflective type sensing type, 100mm, Infrared LED(850nm), NPN open collector output, 10-30VDC power supply. Manufactured by Autonics under the Autonics Photoelectric Sensors category, this model belongs to the Autonics BRQ Series.
| Brand | Autonics |
| Product Type | Photoelectric Sensor |
| Model Number | BRQT100-DDTA-C |
Autonics BRQT100-DDTA-C Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing type | Diffuse reflective type |
| Sensing distance | 100mm |
| Sensing target | Opaque, Translucent material |
| Response time | Max. 1ms |
| Light source | Infrared LED(850nm) |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by control wire) |
| Power supply | 10-30VDC |
| Current consumption | Max. 30mA |
| Control output | NPN open collector |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -25 to 60β, storage: -30 to 70β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP67(IEC standard), IP69K(DIN standard) |
| Connection type | Connector type(M12) |
| Material | γCase: stainless steel 316LγLens, Lens cover: polymethyl methacrylate acrylic |
| Hysteresis(distance) | Max. 20% at rated sensing distance |
| Weight | Approx. 140g(approx. 30g) |
Call us for Cylindrical Photoelectric Sensors BRQT100-DDTA-C at the best rates. Technical Attributes of BRQT100-DDTA-C are the sensor features a diffuse Diffuse reflective type with a reliable sensing distance of 100mm, ensuring precise object detection. Powered by an Infrared LED(850nm), it operates in Light ON/Dark ON(set by control wire) mode, providing optimal efficiency in diverse environments. The response time is an impressive Max. 1ms, enabling quick and accurate detection. This sensor operates on a 10-30VDC power supply and consumes a maximum current of Max. 30mA. It includes an NPN open collector control output for versatile operation. Designed with durability in mind, the protection structure is rated at IP67(IEC standard), IP69K(DIN standard), making it suitable for challenging conditions. The connection type features a robust Connector type(M12) for easy installation. Unlock Exclusive Pricing with a Quote for your requirement of Cylindrical Photoelectric Sensors. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
