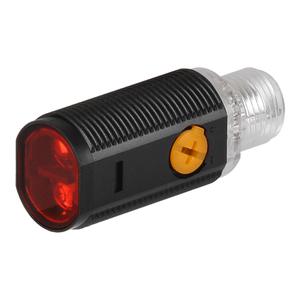

Autonics BRQP400-DDTB-C-P Photoelectric Sensor
The Autonics BRQP400-DDTB-C-P Photoelectric Sensor offers Diffuse reflective type sensing type, 400mm, Red LED(660nm), PNP open collector output, 10-30VDC power supply. Manufactured by Autonics under the Autonics Photoelectric Sensors category, this model belongs to the Autonics BR Series.
| Brand | Autonics |
| Product Type | Photoelectric Sensor |
| Model Number | BRQP400-DDTB-C-P |
Autonics BRQP400-DDTB-C-P Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing type | Diffuse reflective type |
| Sensing distance | 400mm |
| Sensing target | Opaque, Translucent material |
| Response time | Max. 1ms |
| Light source | Red LED(660nm) |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by control wire) |
| Power supply | 10-30VDC |
| Current consumption | Max. 30mA |
| Control output | PNP open collector |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -25 to 60β, storage: -30 to 70β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP67(IEC standard) |
| Connection type | Connector type(M12) |
| Material | Case: PolycarbonateLens, Lens cover: Polymethyl Methacrylate Acrylic |
| Hysteresis(distance) | Max. 20% at rated sensing distance |
| Weight | Approx. 100g (approx. 10g) |
Please speak to our Technical Engineer for Cylindrical Photoelectric Sensors BRQP400-DDTB-C-P at attractive prices. Technical Specs Summary of BRQP400-DDTB-C-P includes the sensor features a diffuse Diffuse reflective type with a reliable sensing distance of 400mm, ensuring precise object detection. Powered by an Red LED(660nm), it operates in Light ON/Dark ON(set by control wire) mode, providing optimal efficiency in diverse environments. The response time is an impressive Max. 1ms, enabling quick and accurate detection. This sensor operates on a 10-30VDC power supply and consumes a maximum current of Max. 30mA. It includes an PNP open collector control output for versatile operation. Designed with durability in mind, the protection structure is rated at IP67(IEC standard), making it suitable for challenging conditions. The connection type features a robust Connector type(M12) for easy installation. Match Your Needs with a Quote for your requirement of Cylindrical Photoelectric Sensors. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
