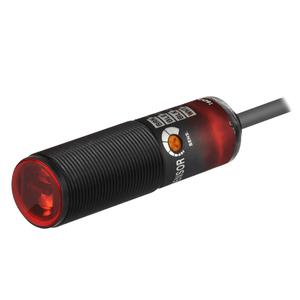

Autonics BRQP400-DDTA Photoelectric Sensor
The Autonics BRQP400-DDTA Photoelectric Sensor offers Diffuse reflective type sensing type, 400mm, Red LED(660nm), NPN open collector output, 10-30VDC power supply. Manufactured by Autonics under the Autonics Photoelectric Sensors category, this model belongs to the Autonics BR Series.
| Brand | Autonics |
| Product Type | Photoelectric Sensor |
| Model Number | BRQP400-DDTA |
Autonics BRQP400-DDTA Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing type | Diffuse reflective type |
| Sensing distance | 400mm |
| Sensing target | Opaque, Translucent material |
| Response time | Max. 1ms |
| Light source | Red LED(660nm) |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by control wire) |
| Power supply | 10-30VDC |
| Current consumption | Max. 30mA |
| Control output | NPN open collector |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -25 to 60β, storage: -30 to 70β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP67(IEC standard) |
| Connection type | Cable type(Γ4, 2m) |
| Material | Case: PolycarbonateLens, Lens cover: Polymethyl Methacrylate Acrylic |
| Hysteresis(distance) | Max. 20% at rated sensing distance |
| Weight | Approx. 120g (approx. 60g) |
The Autonics BRQP400-DDTA Cylindrical Photoelectric Sensors are engineered for industrial environments that demand high-speed detection and durability. This model uses a diffuse reflective sensing type and delivers a reliable sensing distance of 400mm, suitable for both opaque and translucent objects. The red LED (660nm) light source ensures clear and accurate object detection. Engineers can choose between Light ON and Dark ON modes via a control wire and fine-tune detection using the sensitivity adjuster. Powered by 10β30VDC Β±10%, it consumes just 30mA and provides an NPN open collector output compatible with most PLCs. The unit is housed in a robust polycarbonate body with an acrylic lens cover and is rated IP67, making it resistant to water, dust, and oil. Operating temperature ranges from β25Β°C to 60Β°C, with ambient light immunity up to 11,000lx. Its cable-type connection (2m) ensures fast and secure wiring during installation. For more models, visit our Autonics Photoelectric Sensors or explore all automation components at the Autonics brand page.
The BRQP400-DDTA sensor is a go-to solution for compact conveyor systems, label detection setups, pick-and-place machinery, and automated inspection stations where space-saving and fast detection are key. Its small size allows easy integration into tight panels and robotic arms. The IP67 protection makes it reliable even in dusty or humid conditions found in food processing units, assembly lines, and packaging factories.
Maintenance engineers value the BRQP400-DDTA for its low maintenance, solid-state reliability, and stable performance over time. It maintains consistent detection even in variable lighting, helping avoid false triggers and downtime. Plant supervisors and control panel designers appreciate its ease of installation and fast response time, which supports real-time decision-making in production environments. Engineering students and new users find it simple to test and deploy thanks to its intuitive wiring and visible LED indicators. If you're looking for a high-performance sensor that saves space, reduces setup time, and delivers consistent results, you can rely on the Autonics BRQP400-DDTA.
