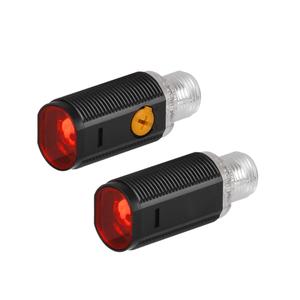

Autonics BRQP30M-TDTB-C Photoelectric Sensor
The Autonics BRQP30M-TDTB-C Photoelectric Sensor offers Through-beam type sensing type, 30m, Red LED(660nm), NPN open collector output, 10-30VDC power supply. Manufactured by Autonics under the Autonics Photoelectric Sensors category, this model belongs to the Autonics BRQ Series.
| Brand | Autonics |
| Product Type | Photoelectric Sensor |
| Model Number | BRQP30M-TDTB-C |
Autonics BRQP30M-TDTB-C Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing type | Through-beam type |
| Sensing distance | 30m |
| Sensing target | Opaque material of min. Γ7mm |
| Response time | Max. 1ms |
| Light source | Red LED(660nm) |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by control wire) |
| Power supply | 10-30VDC |
| Current consumption | Emitter/Receiver: Max. 20mA |
| Control output | NPN open collector |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -25 to 60β, storage: -30 to 70β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP67(IEC standard) |
| Connection type | Connector type(M12) |
| Material | Case: PolycarbonateLens, Lens cover: Polymethyl Methacrylate Acrylic |
| Weight | Approx. 100g (approx. 20g) |
Get A Quote for Cylindrical Photoelectric Sensors BRQP30M-TDTB-C at the best price. Here are the brief Technical Specifications of BRQP30M-TDTB-C are the sensor features a diffuse Through-beam type with a reliable sensing distance of 30m, ensuring precise object detection. Powered by an Red LED(660nm), it operates in Light ON/Dark ON(set by control wire) mode, providing optimal efficiency in diverse environments. The response time is an impressive Max. 1ms, enabling quick and accurate detection. This sensor operates on a 10-30VDC power supply and consumes a maximum current of Emitter/Receiver: Max. 20mA. It includes an NPN open collector control output for versatile operation. Designed with durability in mind, the protection structure is rated at IP67(IEC standard), making it suitable for challenging conditions. The connection type features a robust Connector type(M12) for easy installation. It's Time to get a Quote for your requirement of Cylindrical Photoelectric Sensors. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
