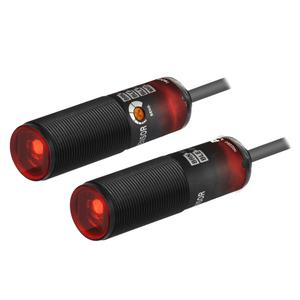

Autonics BRQP20M-TDTA Photoelectric Sensor
The Autonics BRQP20M-TDTA Photoelectric Sensor offers Through-beam type sensing type, 20m, Red LED(660nm), NPN open collector output, 10-30VDC power supply. Manufactured by Autonics under the Autonics Photoelectric Sensors category, this model belongs to the Autonics BRQ Series.
| Brand | Autonics |
| Product Type | Photoelectric Sensor |
| Model Number | BRQP20M-TDTA |
Autonics BRQP20M-TDTA Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Sensing type | Through-beam type |
| Sensing distance | 20m |
| Sensing target | Opaque material of min. Γ7mm |
| Response time | Max. 1ms |
| Light source | Red LED(660nm) |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by control wire) |
| Power supply | 10-30VDC |
| Current consumption | Emitter/Receiver: Max. 20mA |
| Control output | NPN open collector |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -25 to 60β, storage: -30 to 70β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Protection structure | IP67(IEC standard) |
| Connection type | Cable type(Γ4, 2m) |
| Material | Case: PolycarbonateLens, Lens cover: Polymethyl Methacrylate Acrylic |
| Weight | Approx. 160g(approx. 110g) |
Please speak to our Technical Engineer for Cylindrical Photoelectric Sensors BRQP20M-TDTA at attractive prices. Technical Specs Summary of BRQP20M-TDTA includes the sensor features a diffuse Through-beam type with a reliable sensing distance of 20m, ensuring precise object detection. Powered by an Red LED(660nm), it operates in Light ON/Dark ON(set by control wire) mode, providing optimal efficiency in diverse environments. The response time is an impressive Max. 1ms, enabling quick and accurate detection. This sensor operates on a 10-30VDC power supply and consumes a maximum current of Emitter/Receiver: Max. 20mA. It includes an NPN open collector control output for versatile operation. Designed with durability in mind, the protection structure is rated at IP67(IEC standard), making it suitable for challenging conditions. The connection type features a robust Cable type(Γ4, 2m) for easy installation. Match Your Needs with a Quote for your requirement of Cylindrical Photoelectric Sensors. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
